F-15 Air Cleaner – Katalog Suku Cadang Honda Astrea Legenda

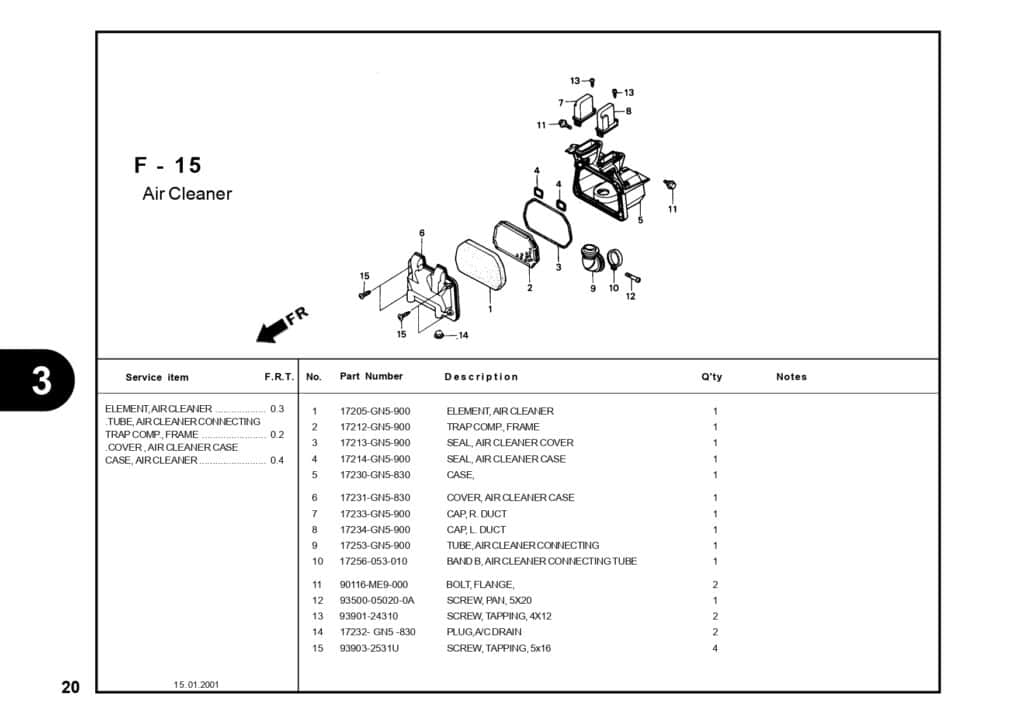

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 ELEMENT CLEANER 17205GN5900 ELEMENT CLEANER
2 TRAP COMP FLAME 17212GN5900 -
3 17213GN5900 17213GN5900 -
4 SEAL A/C 17214GN5900 -
5 CASE A/C 17230GN5830 -
6 COVER,AIR CLEANER 17231GN5830 -
7 CAP R DUCT 17233GN5900 -
8 CAP L DUCT 17234GN5900 -
9 TUBE A/C 17253GN5900 TUBE A/C
10 17256053010 17256053010 -
11 BOLT FLANGE 6MM 90116ME9000 BOLT FLANGE 6MM
12 SCREW, PAN, 5X20 93500050200A SCREW, PAN, 5X20
13 SCREW TAPPING 4X12 9390124310 -
14 17232 GN5 830 17232 GN5 830 -
15 939032531U 939032531U -
