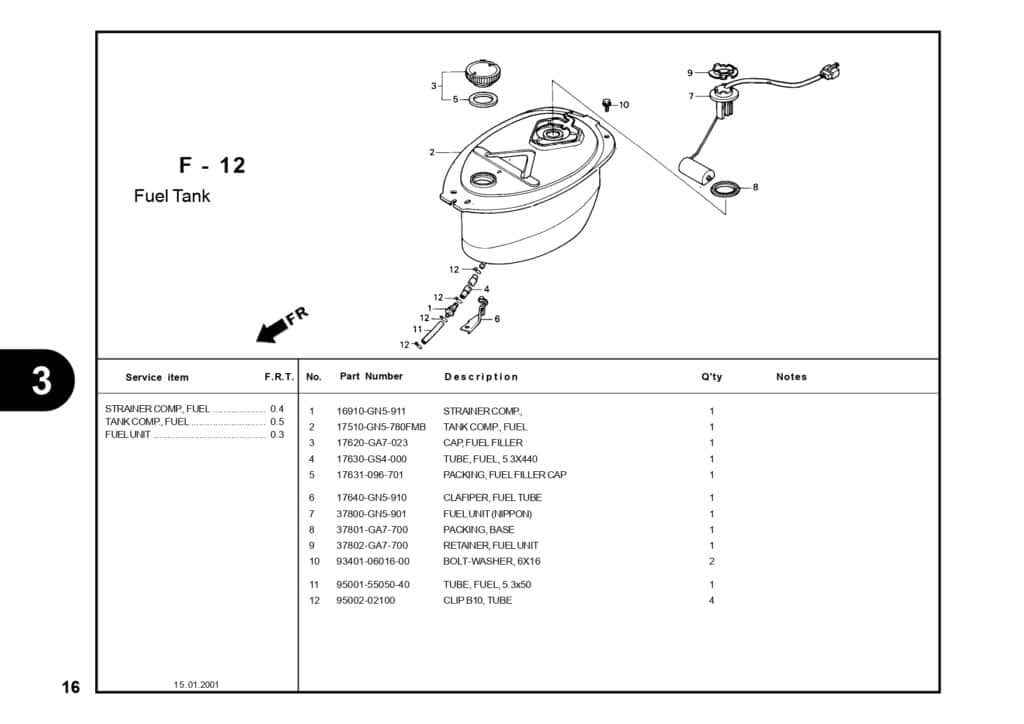

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | 16910GN5911 | 16910GN5911 | - |
| 2 | 17510GN5780FMB | 17510GN5780FMB | - |
| 3 | 17620GA7023 | 17620GA7023 | - |
| 4 | 17630GS4000 | 17630GS4000 | - |
| 5 | PACKING FUEL FILL | 17631096701 | - |
| 6 | CLAMPER,TUBE FUEL | 17640GN5910 | - |
| 7 | 37800GN5901 | 37800GN5901 | - |
| 8 | PACKING BASE | 37801GA7700 |
|
| 9 | RETAINER FUEL | 37802GA7700 | - |
| 10 | BOLT WASHER 6X16 | 934010601600 | - |
| 11 | 950015505040 | 950015505040 | - |
| 12 | CLIP B10,TUBE | 9500202100 |
|
