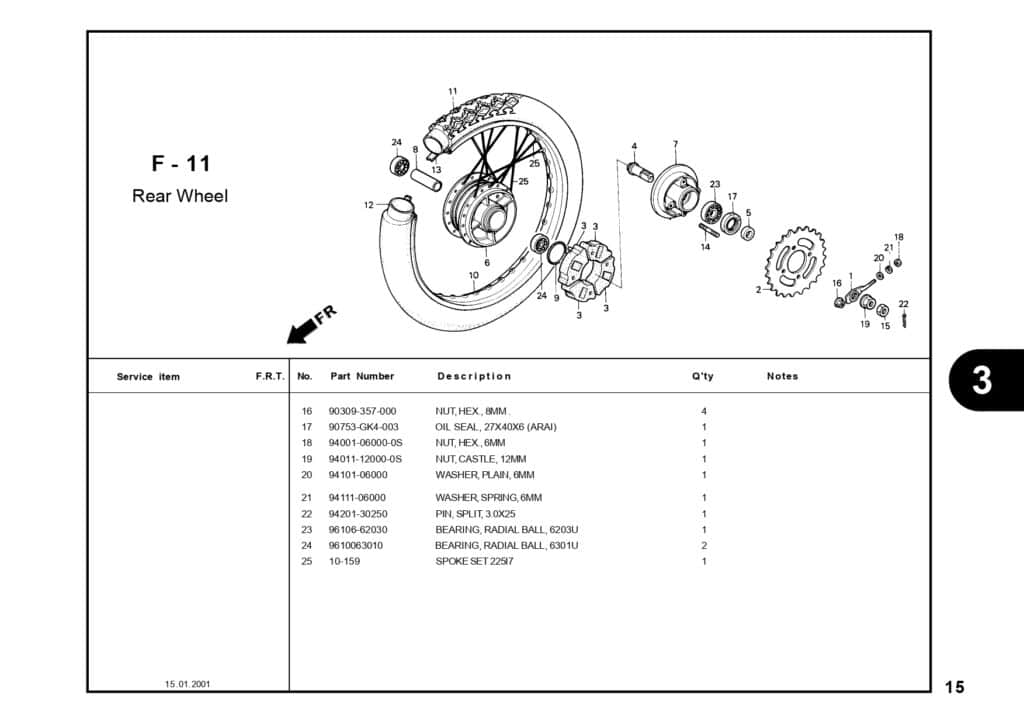

F-11 Rear Wheel – Katalog Suku Cadang Honda Astrea Legenda

#	Informasi Produk	Visual
1	ADJUSTER L CHAIN Part Number : `40540GN5830`
2	SPROCKET DRIVEN Part Number : `41201GN5900`
3	DAMPER,RR WHEEL SET Part Number : `41241GB4771`
4	SLEEVE AXLE Part Number : `42303GN5830`
5	COLLAR REAR WHEEL SIDE Part Number : `42304GN5900`
6	42601GN5FMS Part Number : `42601GN5FMS`
7	42610GN5900 Part Number : `42610GN5900`
8	COLLAR RR AXLE Part Number : `42620GB6920`
9	O-RING 40.5X3 Part Number : `42653001004`
10	42701030007 Part Number : `42701030007`
11	42710087741 Part Number : `42710087741`
13	42713GN8F00 Part Number : `42713GN8F00`
14	BOLT STUD 8X43 Part Number : `90128GS4000`
15	NUT REAR AXLE Part Number : `90307001000`
16	NUT HEX 8MM Part Number : `90309357000`
17	90753GK4003 Part Number : `90753GK4003`
18	NUT HEX 6MM Part Number : `94001060000S`
19	94011120000S Part Number : `94011120000S`
20	WASHER PLAIN 6MM Part Number : `9410106000`
21	WASHER,SPRING 6MM Part Number : `9411106000`
22	PIN,SPLIT 30X25 Part Number : `9420130250`
23	9610662030 Part Number : `9610662030`
24	BEARING 6301 SET Part Number : `AHB6301RS`
25	10159 Part Number : `10159`
