E-2 Cylinder Head – Katalog Suku Cadang Honda Astrea Legenda

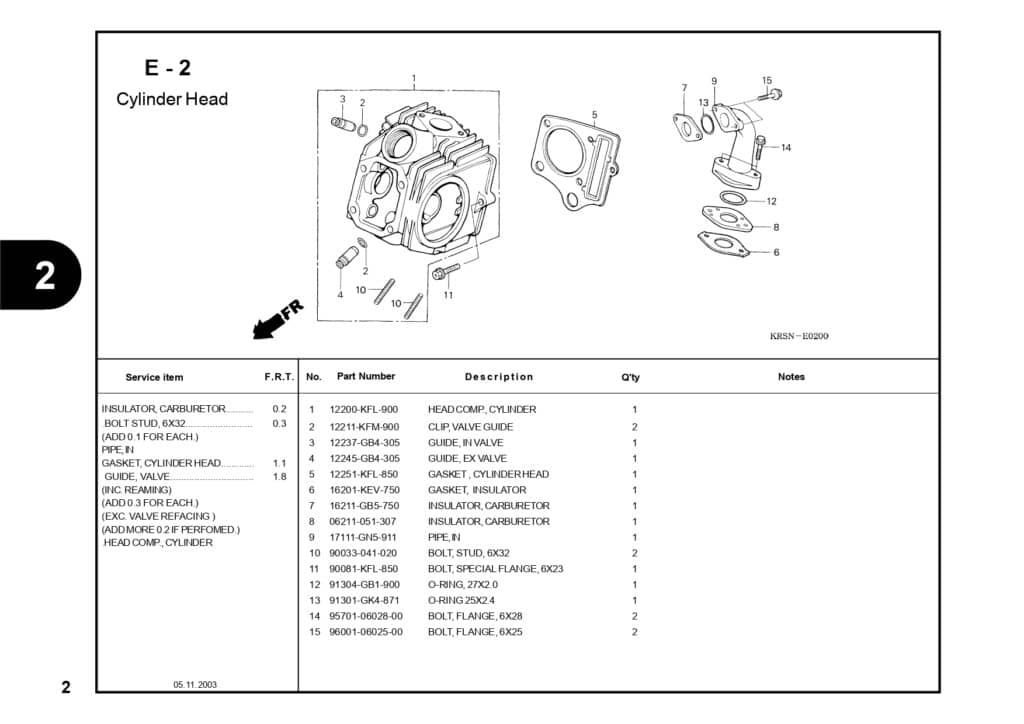

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 HEAD CYLINDER 12200KFL900 -
2 CLIP VALVE GUIDE 12211KFM901 CLIP VALVE GUIDE
3 GUIDE,IN VALVE 12237GB4305 GUIDE,IN VALVE
4 GUIDE,EX VALVE 12245GB4305 GUIDE,EX VALVE
5 GASKET CYLINDER HEAD 12251KFL850 GASKET CYLINDER HEAD
6 GASKET, CARB INSULATOR 16201KEV752 -
7 INSULATOR CARB 16211GB5750 -
8 INSULATOR CARB 6211051307 -
9 PIPE INLET 17111GN5911 -
10 BOLT STUD 6X32 90033041021 -
11 BOLT, SPL FLANGE 6X23 90081KFL850 -
12 ORING 25 X 2.4 91304GB1900 ORING 25 X 2.4
13 O-RING 27X2.0 91301GK4871 -
14 BOLT FLANGE 6X28 957010602800 BOLT FLANGE 6X28
15 BOLT FLANGE 6X25 960010602500 BOLT FLANGE 6X25
