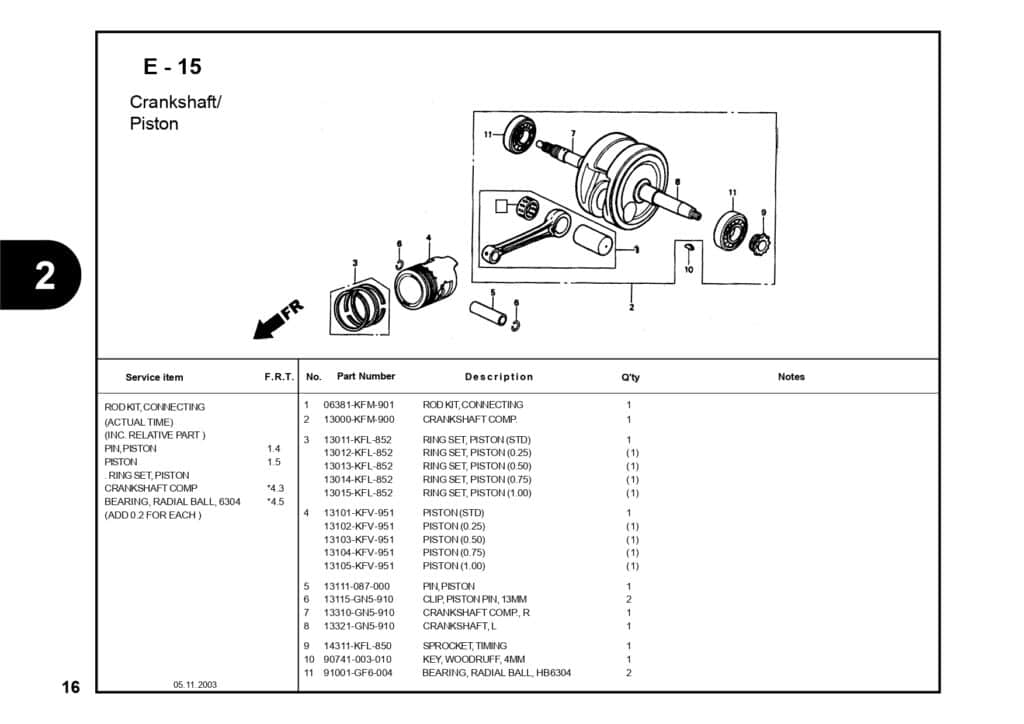

E-15 Crankshaft Piston – Katalog Suku Cadang Honda Astrea Legenda

#	Informasi Produk	Visual
1	ROD KIT CONNECTING Part Number : `06381KFM901`
2	13000KFM900 Part Number : `13000KFM900`
3	RING SET, PISTON (STD) Part Number : `13011KFL852`
3	RING SET, PISTON (0.25) Part Number : `13012KFL852`
3	RING SET, PISTON (0.50) Part Number : `13013KFL852`
3	RING SET, PISTON(0.75) Part Number : `13014KFL852`
3	RING SET, PISTON(1.00) Part Number : `13015KFL852`
4	PISTON STD Part Number : `13101KFV951`
4	PISTON (0.25) Part Number : `13102KFV951`
4	PISTON (0.50) Part Number : `13103KFV951`
4	PISTON (0.75) Part Number : `13104KFV951`
4	PISTON (1.00) Part Number : `13105KFV951`
5	PIN PISTON Part Number : `13111087001`
6	CLIP, PISTON PIN, 13MM Part Number : `13115GN5910`
7	13310GN5910 Part Number : `13310GN5910`
8	13321GN5910 Part Number : `13321GN5910`
9	SPROCKET TIMING Part Number : `14311KFL851`
10	KEYWOODRUFF 4MM Part Number : `90741003010`
11	BEARING, RADIAL BALL, 6304 Part Number : `AHB6304`
