E-14 Crankcase – Katalog Suku Cadang Honda Astrea Legenda

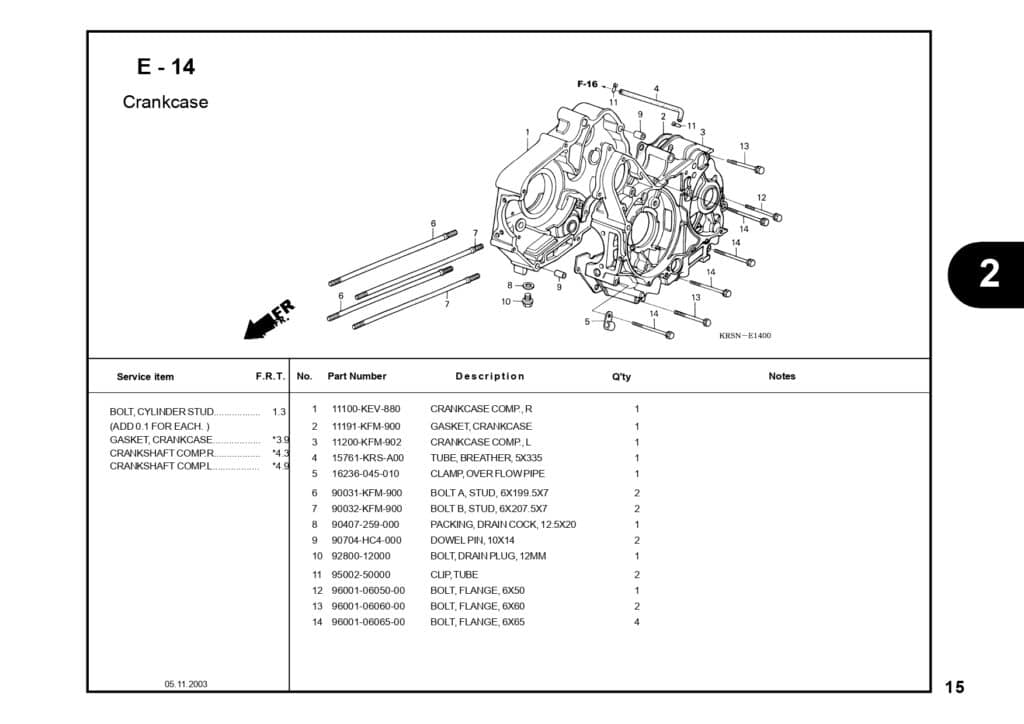

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 CRANKCASE COMP R (SLV) 11100KEV880 CRANKCASE COMP R (SLV)
2 GASKET CRANKCASE 11191KFM900 -
3 CRANKCASE COMP L 11200KFM902 -
4 15761KRSA00 15761KRSA00 -
5 CLAMPER,OVER FLOW 16236045010 -
6 BOLT A STUD 6X199.5X7 90031KFM901 -
7 90032KFM900 90032KFM900 -
8 PACKING COCK 90407259000 PACKING COCK
9 90704HC4000 90704HC4000 -
10 DRAINCOCK 9280012000 DRAINCOCK
11 CLIP,TUBE 5.0 MM 9500250000 CLIP,TUBE 5.0 MM
12 BOLT FLANGE 6X50 960010605000 BOLT FLANGE 6X50
13 BOLT FLANGE SH 6X60 960010606001 BOLT FLANGE SH 6X60
14 BOLT FLANGE 6X65 960010606500 BOLT FLANGE 6X65
