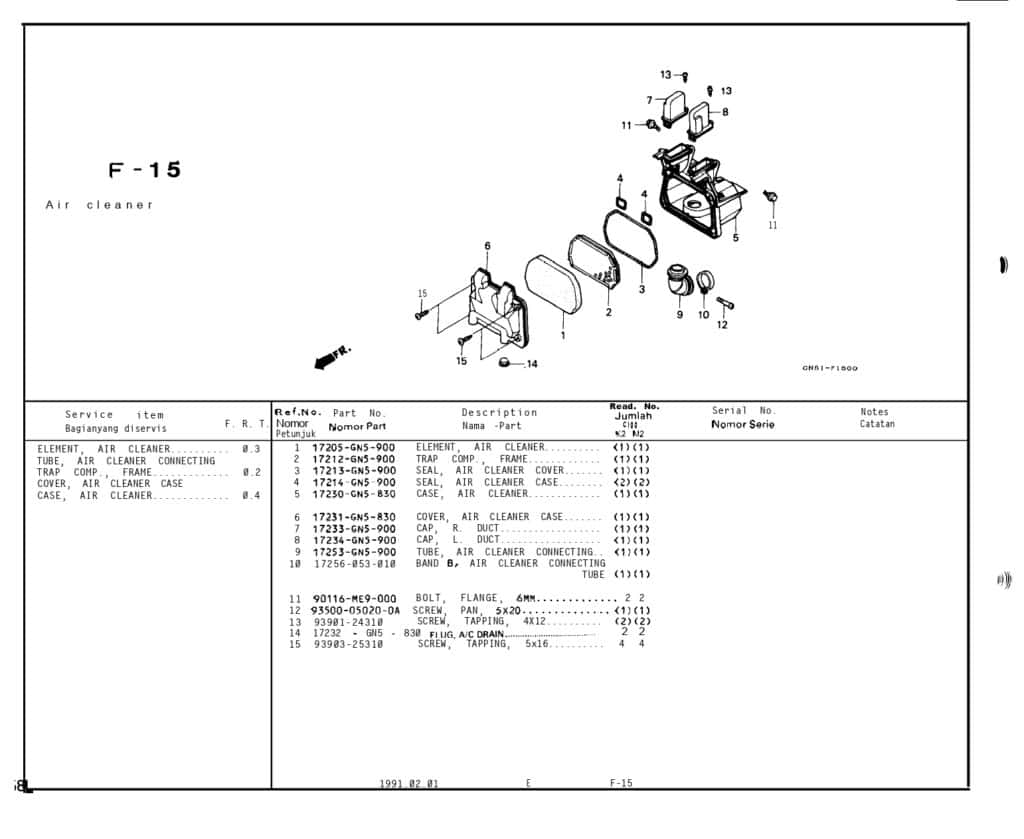

F-15 Air Cleaner – Katalog Suku Cadang Honda Astrea Grand

#	Informasi Produk	Visual
1	ELEMENT CLEANER Part Number : `17205GN5900`
2	TRAP COMP FLAME Part Number : `17212GN5900`
3	17213GN5900 Part Number : `17213GN5900`
4	SEAL A/C Part Number : `17214GN5900`
5	CASE A/C Part Number : `17230GN5830`
6	COVER,AIR CLEANER Part Number : `17231GN5830`
7	CAP R DUCT Part Number : `17233GN5900`
8	CAP L DUCT Part Number : `17234GN5900`
9	TUBE A/C Part Number : `17253GN5900`
10	17256053010 Part Number : `17256053010`
11	BOLT FLANGE 6MM Part Number : `90116ME9000`
12	SCREW, PAN, 5X20 Part Number : `93500050200A`
13	SCREW TAPPING 4X12 Part Number : `9390124310`
14	17232GN5830 Part Number : `17232GN5830`
15	SCREW TAPPING 5X16 Part Number : `9390325310`
