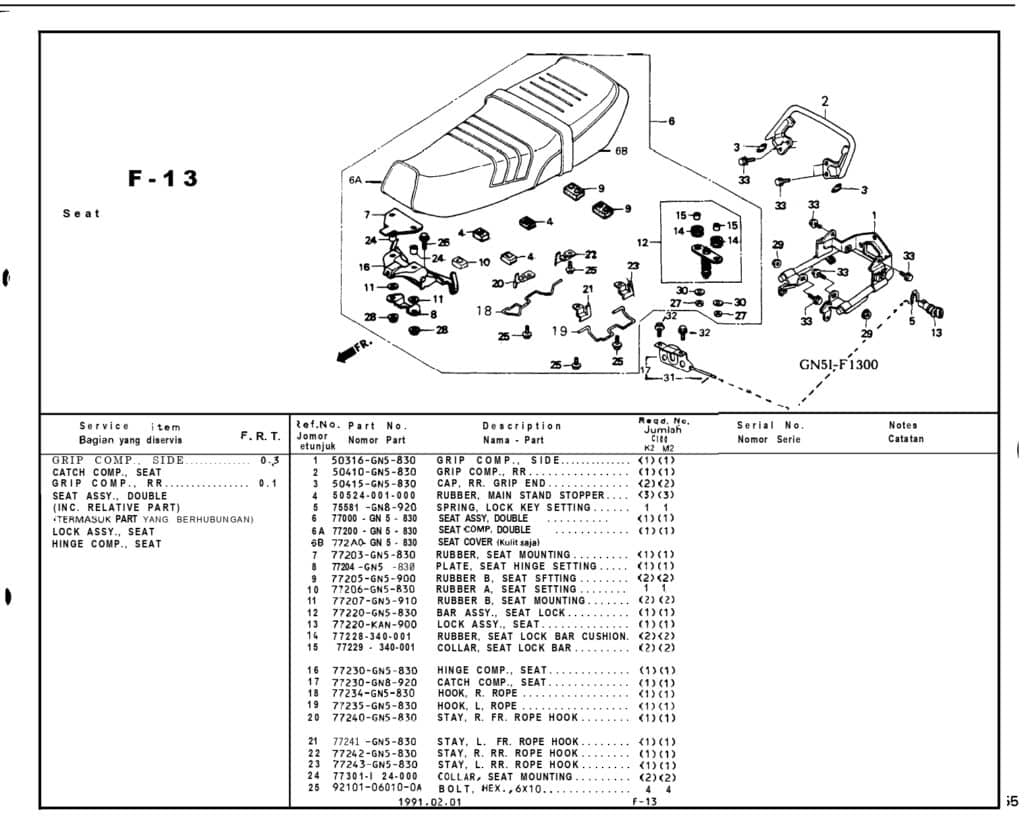

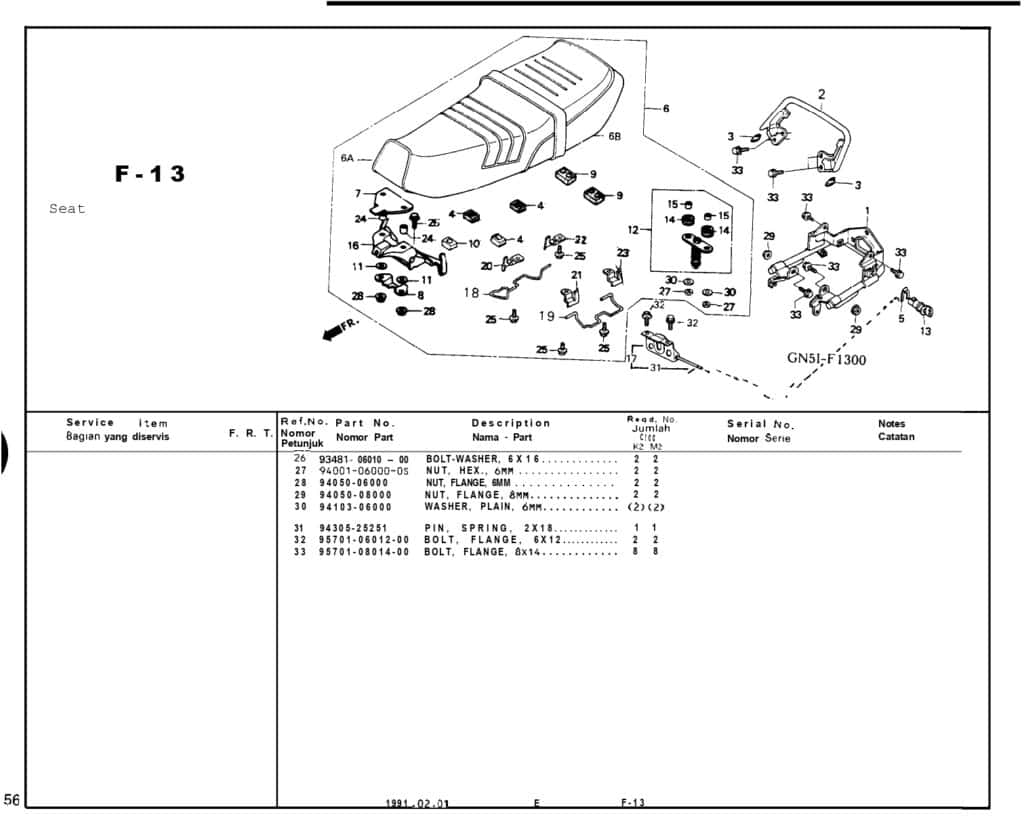

F-13 Seat – Katalog Suku Cadang Honda Astrea Grand
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
50316GN5830 |
50316GN5830 |
-
|
| 2 |
50410GN5830 |
50410GN5830 |
-
|
| 3 |
50415GN5830 |
50415GN5830 |
-
|
| 4 |
RUBBER STAND STOPER |
50524001000 |
-
|
| 5 |
SPRING LOCK KEY |
75581GN8920 |
|
| 6 |
77000GN5830 |
77000GN5830 |
-
|
| 6a |
77200GN5830 |
77200GN5830 |
-
|
| 6b |
COVER SEAT |
772A0GN5830 |
|
| 7 |
77203GN5830 |
77203GN5830 |
-
|
| 8 |
77204GN5830 |
77204GN5830 |
-
|
| 9 |
77205GN5900 |
77205GN5900 |
-
|
| 10 |
77206GN5030 |
77206GN5030 |
-
|
| 11 |
RUBBER SEAT |
77207GN5910 |
-
|
| 12 |
77220GN5830 |
77220GN5830 |
-
|
| 13 |
77220KAN900 |
77220KAN900 |
-
|
| 14 |
RUBBER,LOCK CUSH |
77228340001 |
-
|
| 15 |
COLLAR,SEAT LOCK |
77229340001 |
-
|
| 16 |
77230GN5830 |
77230GN5830 |
-
|
| 17 |
77230GN8920 |
77230GN8920 |
-
|
| 18 |
77234GN5830 |
77234GN5830 |
-
|
| 19 |
77235GN5830 |
77235GN5830 |
-
|
| 20 |
77240GN5830 |
77240GN5830 |
-
|
| 21 |
77241GN5830 |
77241GN5830 |
-
|
| 22 |
77242GN5830 |
77242GN5830 |
-
|
| 23 |
77243GN5830 |
77243GN5830 |
-
|
| 24 |
COLLAR,SEAT MOUNT |
77301124000 |
-
|
| 25 |
BOLT, HEX., 6X10 |
92101060100A |
|
| 26 |
934810601000 |
934810601000 |
-
|
| 27 |
NUT HEX 6MM |
94001060000S |
|
| 28 |
NUT,FLANGE 6MM |
9405006000 |
|
| 29 |
NUT FLANGE 8MM |
9405008000 |
|
| 30 |
WASHER PLAIN 6MM |
9410306000 |
|
| 31 |
PIN,SPRING2.5X2.5 |
9430525251 |
-
|
| 32 |
BOLT FLANGE 6X12 |
957010601200 |
|
| 33 |
BOLT,FLANGE 8X14 |
957010801400 |
|
