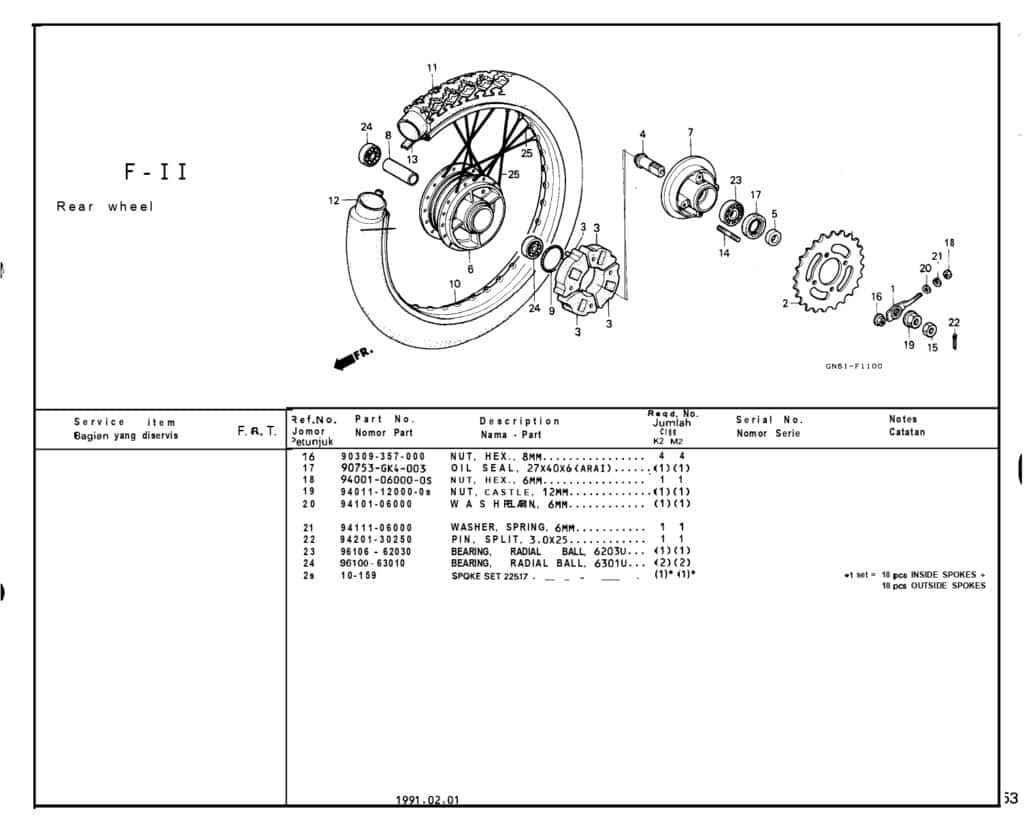

F-11 Rear Wheel – Katalog Suku Cadang Honda Astrea Grand

#	Informasi Produk	Visual
1	ADJUSTER L CHAIN Part Number : `40540GN5830`
2	SPROCKET DRIVEN Part Number : `41201GN5900`
3	DAMPER,RR WHEEL SET Part Number : `41241GB4771`
4	SLEEVE AXLE Part Number : `42303GN5830`
5	COLLAR REAR WHEEL SIDE Part Number : `42304GN5900`
6	HUB RR WHEEL Part Number : `42601KPH900`
7	42610GN5900 Part Number : `42610GN5900`
8	42620686920 Part Number : `42620686920`
9	O-RING 40.5X3 Part Number : `42653001004`
10	RIM RR WHEEL Part Number : `42701KEV882`
11	Tire, RR (275-17 FR135) Part Number : `42711KPH881`
12	TUBE TIRE (2.75-17) Part Number : `2751700000NR00`
14	BOLT STUD 8X43 Part Number : `90128GS4000`
15	NUT REAR AXLE Part Number : `90307001000`
16	NUT HEX 8MM Part Number : `90309357000`
17	90753GK4003 Part Number : `90753GK4003`
18	94001060000 Part Number : `94001060000`
19	94011120000S Part Number : `94011120000S`
20	WASHER PLAIN 6MM Part Number : `9410106000`
21	WASHER,SPRING 6MM Part Number : `9411106000`
22	PIN,SPLIT 30X25 Part Number : `9420130250`
23	Bearing 6203 Part Number : `91054K03N41`
24	Bearing 6301 Part Number : `91053K03H02`
25	ari-Jari (Spoke Set) 22517 Part Number : `1112-159`
