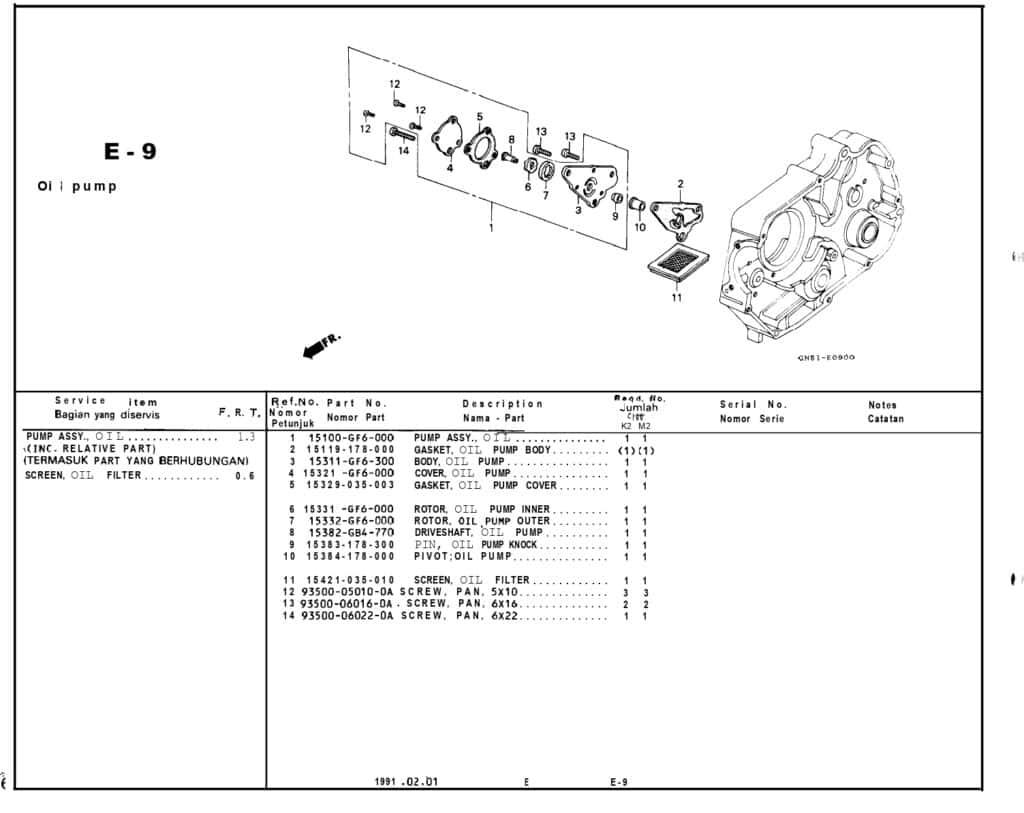

E-9 Oil Pump – Katalog Suku Cadang Honda Astrea Grand
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
15100GF6000 |
15100GF6000 |
-
|
| 2 |
GASKET OIL PUMP |
15119178000 |
-
|
| 3 |
15311GF6300 |
15311GF6300 |
-
|
| 4 |
15321GF6000 |
15321GF6000 |
-
|
| 5 |
15329035003 |
15329035003 |
-
|
| 6 |
ROTOR,OIL PUMP IN |
15331GF6000 |
|
| 7 |
ROTOR,OIL PUMPOUT |
15332GF6000 |
|
| 8 |
15382684770 |
15382684770 |
-
|
| 9 |
KNOCK,OIL PUMP |
15383178300 |
-
|
| 10 |
PIVOT OIL PUMP |
15384178000 |
-
|
| 11 |
SCREEN OIL FILTER |
15421035010 |
-
|
| 12 |
SCREW,CROSS 5X10 |
93500050100A |
|
| 13 |
SCREW PAN 6X16 |
93500060160A |
-
|
| 14 |
SCREW,PAN 6X22 |
93500060220A |
-
|
