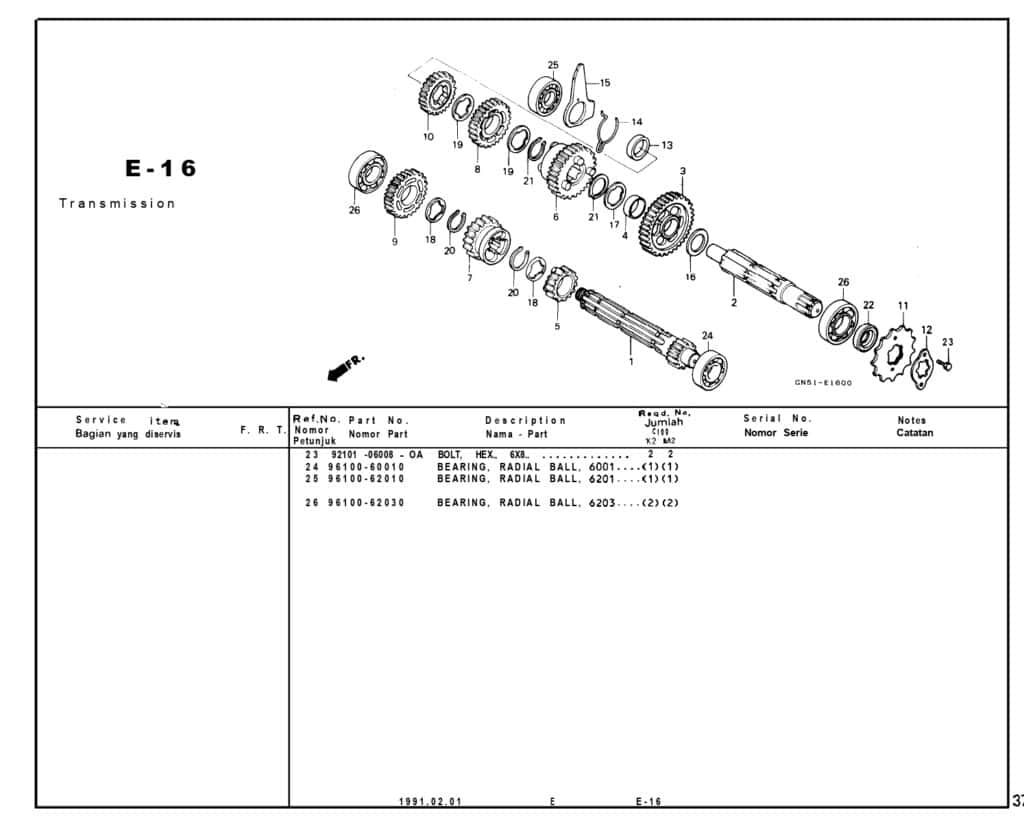

E-16 Transmission – Katalog Suku Cadang Honda Astrea Grand

#	Informasi Produk	Visual
1	MAINSHAFT 12T Part Number : `23211GN5911`
2	COUNTERSHAFT Part Number : `23221GN5914`
3	GEAR C-1 34T Part Number : `23421GN5912`
4	BUSH 20X9 Part Number : `23422GB4771`
5	GEAR M-2 17T Part Number : `23431GF6000`
6	GEAR C-2 29T Part Number : `23441GB4772`
7	GEAR M-3 21T Part Number : `23451GK4763`
8	GEAR C-3 26T Part Number : `23461GK4763`
9	23471GN910 Part Number : `23471GN910`
10	GEAR C-4 23T Part Number : `23481GB4772`
11	Sprocket Drive 14T Part Number : `23801GF6002`
12	PLATE FIXING Part Number : `23802GN5911`
13	COLLAR LOCK PLATE Part Number : `23911GB4771`
14	SPRING CHANGE FRICTION Part Number : `24305GB4771`
15	PLATE DRUM LOCK Part Number : `24306GB4771`
16	WASHER, TRUST 17 MM Part Number : `90452GB4770`
17	WASHER SPLINE 20X1.2 Part Number : `90461GB4771`
18	WASHER, SPLINE 17MM Part Number : `90461035000`
19	WASHER SPLINE 20MM Part Number : `90461459010`
20	CIRCLIP, EXTERNAL, 17MM Part Number : `90601001000`
21	CIRCLIP 20MM Part Number : `90601459000`
22	OILSEAL,17X29X5 Part Number : `91203GB5761`
23	BOLT HEX 6X8 Part Number : `92101060080A`
24	Bearing Ball Radial 6001 Part Number : `91008KVY901`
24	Bearing Ball Radial 6001 Part Number : `HB6001`
25	Bearing Ball 6201 Part Number : `HB6201`
26	Bearing 6203 Part Number : `961006203001`
