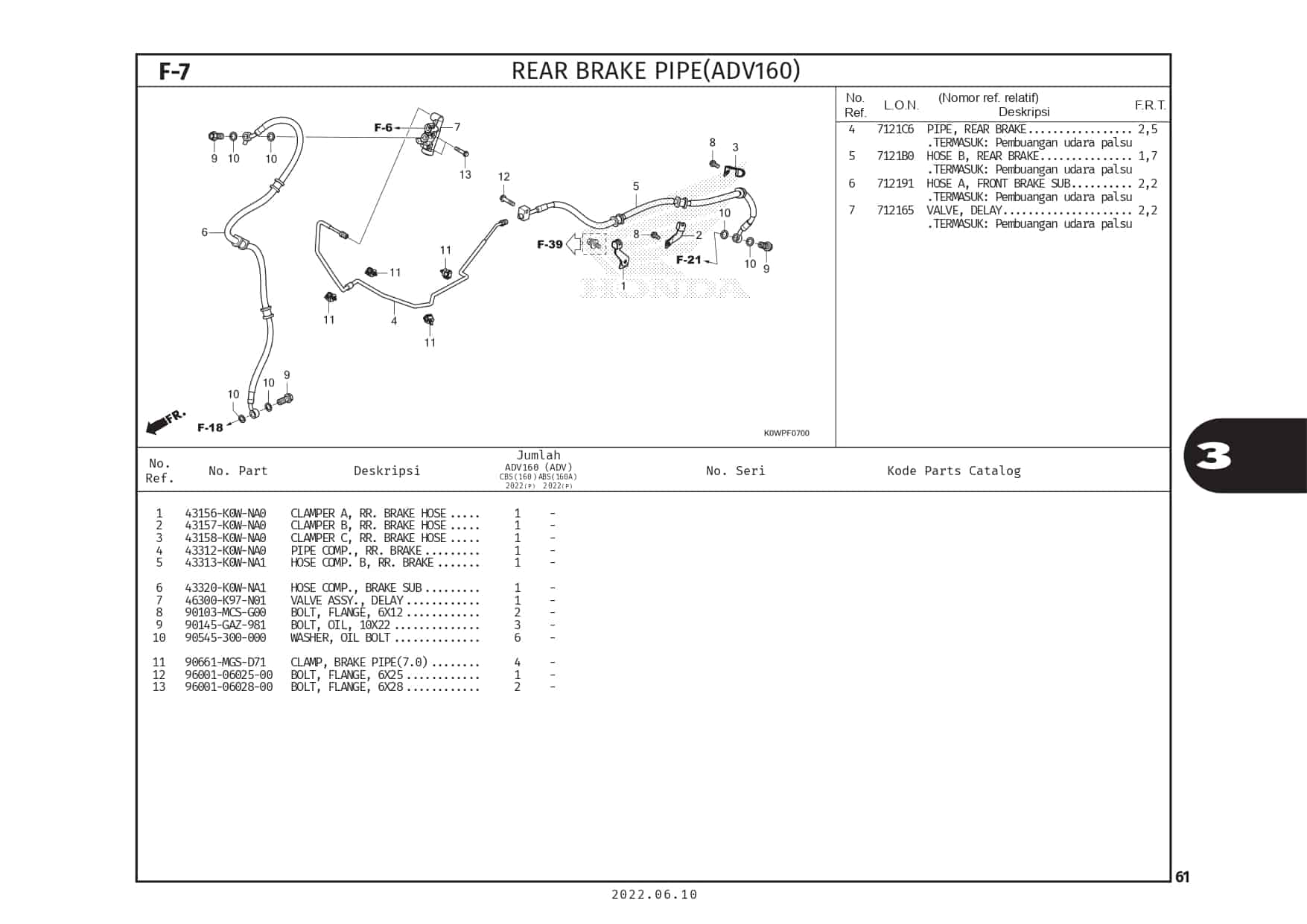

F-7 Rear Brake Pipe – Honda ADV 160

#	Informasi Produk	Visual
1	CLAMPER A,RR BRK HOSE Part Number : `43156K0WNA0`
2	CLAMPER B,RR BRAKE HOSE Part Number : `43157K0WNA0`
3	CLAMPER C,RR BRAKE HOSE Part Number : `43158K0WNA0`
4	PIPE COMP B,RR BRAKE Part Number : `43312K0WNA0`
5	HOSE COMP B,RR BRK Part Number : `43313K0WNA1`
6	HOSE COMP,BRAKE SUB Part Number : `43320K0WNA1`
7	DELAY VALVE ASSY Part Number : `46300K97N01`
8	BOLT FLANGE 6X12 Part Number : `90103MCSG00`
9	BOLT OIL 10X22 Part Number : `90145GAZ981`
10	WASHER OIL BOLT Part Number : `90545300000`
11	CLAMP BRAKE PIPE NG Part Number : `90661MGSD71`
12	BOLT FLANGE 6X25 Part Number : `960010602500`
13	BOLT FLANGE 6X28 Part Number : `960010602800`
