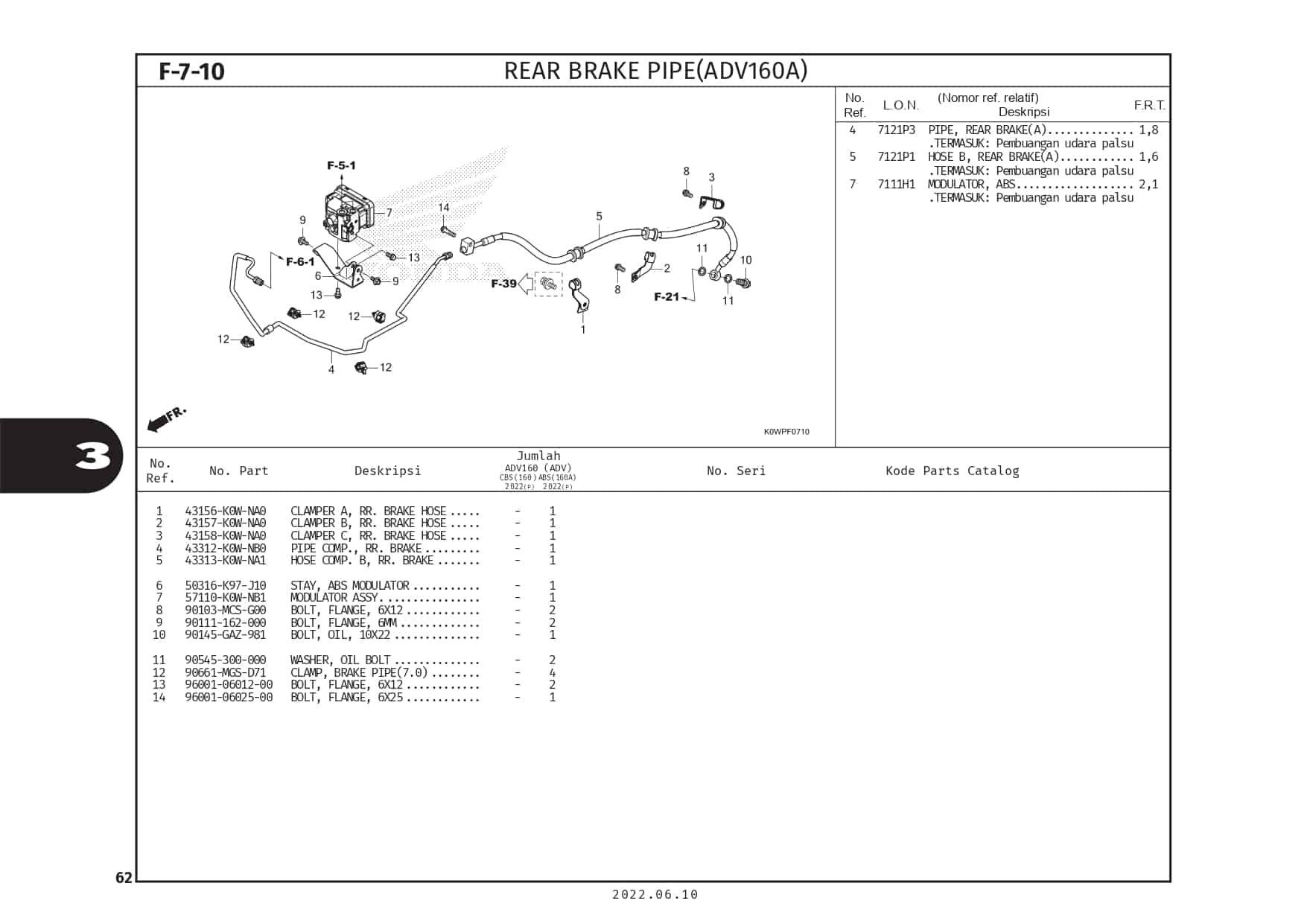

F-7-1 Rear Brake Pipe – Honda ADV 160

#	Informasi Produk	Visual
1	CLAMPER A,RR BRK HOSE Part Number : `43156K0WNA0`
2	CLAMPER B,RR BRAKE HOSE Part Number : `43157K0WNA0`
3	CLAMPER C,RR BRAKE HOSE Part Number : `43158K0WNA0`
4	PIPE COMP B,RR BRAKE Part Number : `43312K0WNB0`
5	HOSE COMP B,RR BRK Part Number : `43313K0WNA1`
6	STAY ABS MOD Part Number : `50316K97J10`
7	MODULATOR ASSY Part Number : `57110K0WNB1`
8	BOLT FLANGE 6X12 Part Number : `90103MCSG00`
9	BOLT FLANGE 6MM Part Number : `90111162000`
10	BOLT OIL 10X22 Part Number : `90145GAZ981`
11	WASHER OIL BOLT Part Number : `90545300000`
12	CLAMP BRAKE PIPE NG Part Number : `90661MGSD71`
13	BOLT FLANGE SH 6X12 Part Number : `960010601200`
14	BOLT FLANGE 6X25 Part Number : `960010602500`
