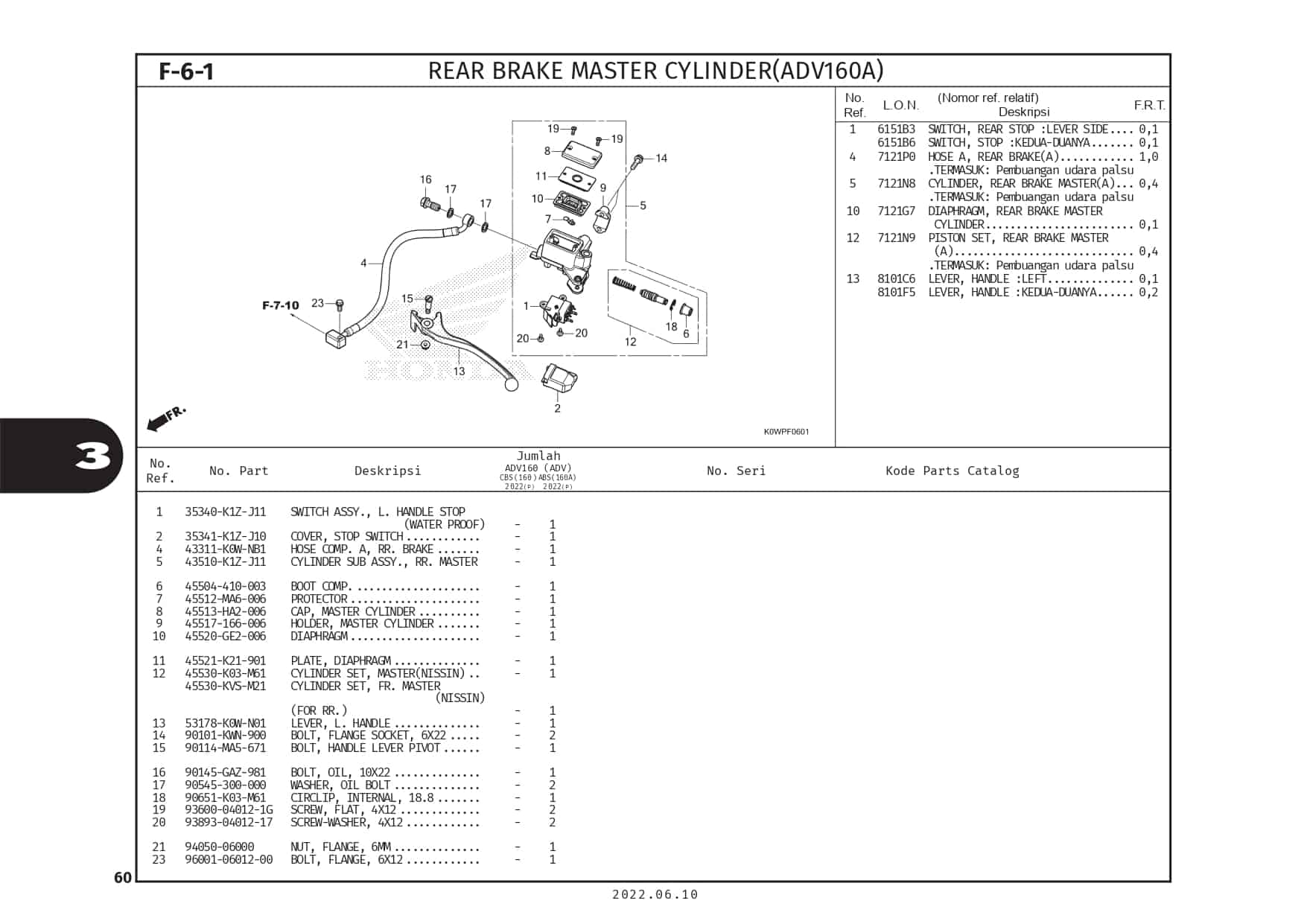

F-6-1 Rear Brake Master Cylinder – Honda ADV 160

#	Informasi Produk	Visual
1	SW ASSY,LH STOP(WATER PROOF) Part Number : `35340K1ZJ11`
2	COVER,LH STOP SW Part Number : `35341K1ZJ10`
4	HOSE COMP A,RR BRAKE Part Number : `43311K0WNB1`
5	SUB ASSY,RR M/C Part Number : `43510K1ZJ11`
6	BOOT COMP Part Number : `45504410003`
7	PROTECTOR Part Number : `45512MA6006`
8	CAP,MASTER CYL Part Number : `45513HA2006`
9	HOLDER MASTER CYL Part Number : `45517166006`
10	DIAPHRAGM Part Number : `45520GE2006`
11	PLATE DIAPHRAGM Part Number : `45521K21901`
12	CYLINDER SET, MASTER Part Number : `45530K03M61`
12	CYLINDER SET.FR M Part Number : `45530KVSM21`
13	LEVER,L HNDL Part Number : `53178K0WN01`
14	BOLT,FLANGE SOCKET 6X22 Part Number : `90101KWN900`
15	BOLT, HANDLE LEVER PIVOT Part Number : `90114MA5671`
16	BOLT OIL 10X22 Part Number : `90145GAZ981`
17	WASHER OIL BOLT Part Number : `90545300000`
18	CIRCLIP, INTERNAL, 18.8 Part Number : `90651K03M61`
19	SCREW FLAT, 4X12 Part Number : `93600040121G`
20	SCREW WASHER 4X12 Part Number : `938930401217`
21	NUT,FLANGE 6MM Part Number : `9405006000`
23	BOLT FLANGE SH 6X12 Part Number : `960010601200`
