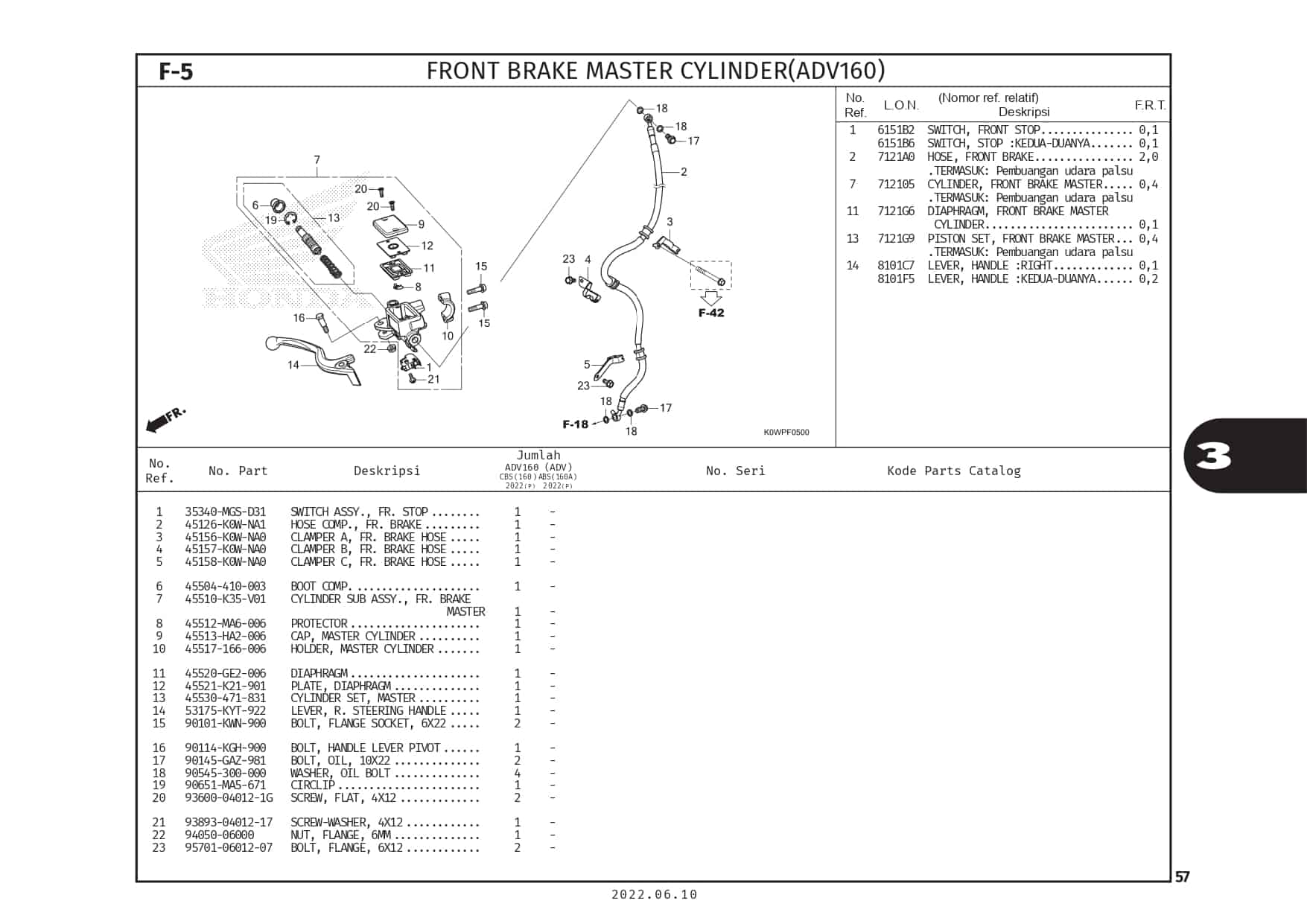

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SWITCH FR STOP ASSY | 35340MGSD31 |
|
| 1 | SWITCH FR STOP ASSY | 35340MA5672 |
|
| 1 | SWITCH FR STOP ASSY | 35340MA5671 |
|
| 2 | HOSE COMP,FR BRK | 45126K0WNA1 |
|
| 3 | CLAMPER A,FR BRAKE HOSE | 45156K0WNA0 |
|
| 4 | CLAMPER B,FR BRAKE HOSE | 45157K0WNA0 |
|
| 5 | CLAMPER C,FR BRAKE HOSE | 45158K0WNA0 |
|
| 6 | BOOT COMP | 45504410003 |
|
| 7 | CYLINDER SUB ASSY FR BRAKE | 45510K35V01 |
|
| 8 | PROTECTOR | 45512MA6006 |
|
| 9 | CAP,MASTER CYL | 45513HA2006 |
|
| 10 | HOLDER MASTER CYL | 45517166006 |
|
| 11 | DIAPHRAGM | 45520GE2006 |
|
| 12 | PLATE DIAPHRAGM | 45521K21901 |
|
| 13 | CYLINDER SET,MAS | 45530471831 |
|
| 13 | CYLINDER SET,MAS | 45530KET920 |
|
| 14 | LEVER,R STRG HNDL | 53175KYT922 |
|
| 15 | BOLT,FLANGE SOCKET 6X22 | 90101KWN900 |
|
| 16 | BOLT HANDLE LEVER | 90114KGH900 |
|
| 17 | BOLT OIL 10X22 | 90145GAZ981 |
|
| 18 | WASHER OIL BOLT | 90545300000 |
|
| 19 | CIRCLIP | 90651MA5671 |
|
| 20 | SCREW FLAT, 4X12 | 93600040121G |
|
| 21 | SCREW WASHER 4X12 | 938930401217 |
|
| 22 | NUT,FLANGE 6MM | 9405006000 |
|
| 23 | BOLT FLANGE 6X12 | 957010601207 |
|
