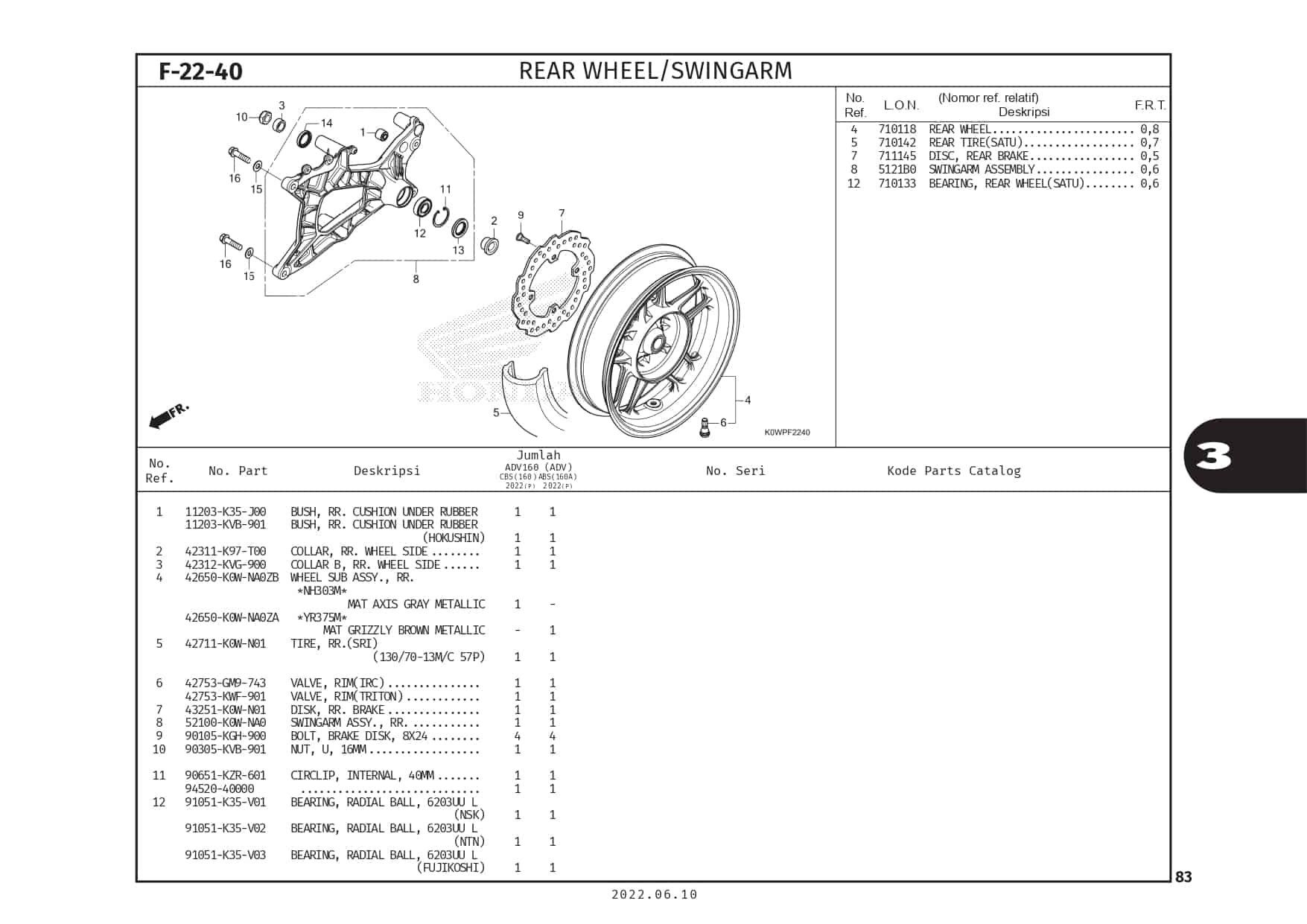

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | BUSH RR CUSHION UNDER RBR | 11203K35J01 |
|
| 1 | UNDER RUBBER BUSH REAR | 11203KVB901 |
|
| 2 | COLLAR RR WHEEL S | 42311K97T00 |
|
| 3 | COLLAR B, RR WHEEL SIDE | 42312KVG900 |
|
| 4 | WHEEL SUB ASSY,REAR (MA AX GY) | 42650K0WNA0ZB |
|
| 4 | Wheel Comp Rear (MT GR BR) | 42601K0WNA1MBR |
|
| 4 | WHEEL SUB ASSY,REAR (MT GR BR) | 42650K0WNA0ZA |
|
| 4 | Wheel Comp Rear MA AX GY | 42601K0WNA1MAG |
|
| 5 | TIRE,REAR(SRI) (130/70-13M/C 57P) | 42711K0WN01 |
|
| 6 | VALVE,RIM (INOUE) | 42753GM9743 |
|
| 7 | VALVE,RIM(TRITON) | 42753KWF901 |
|
| 8 | DISK,RR BRAKE | 43251K0WN01 |
|
| 9 | SWINGARM ASSY,REAR | 52100K0WNA0 |
|
| 9 | SWINGARM ASSY,REAR | 52100K0WAA0 |
|
| 10 | BOLT BRK DISK 8X24 | 90105KGH900 |
|
| 11 | NUT U 16MM | 90305KVB901 |
|
| 11 | CIRCLIP,IN 40 | 90651KZR601 |
|
| 12 | CIRCLIP,IN 40 | 90651KZR601 |
|
| 12 | BEARING RADIAL BALL 6203UU LBL | 91051K35V01 |
|
| 12 | BEARING, RADIAL BALL, 6203UU | 91051K35V02 |
|
| 12 | BRG BALL RADIAL 6 | 91051K35V03 |
|
| 12 | BRG BALL RADIAL 6 | 91051K35V04 |
|
| 13 | DUST SEAL 25X40X5 | 91252K35V01 |
|
| 14 | DUST SEAL 25X35X6 | 91253K35V01 |
|
| 15 | WASHER PLAIN 10MM | 9410110000 |
|
| 16 | BOLT,FLANGE 10X40 | 957011004000 |
|
