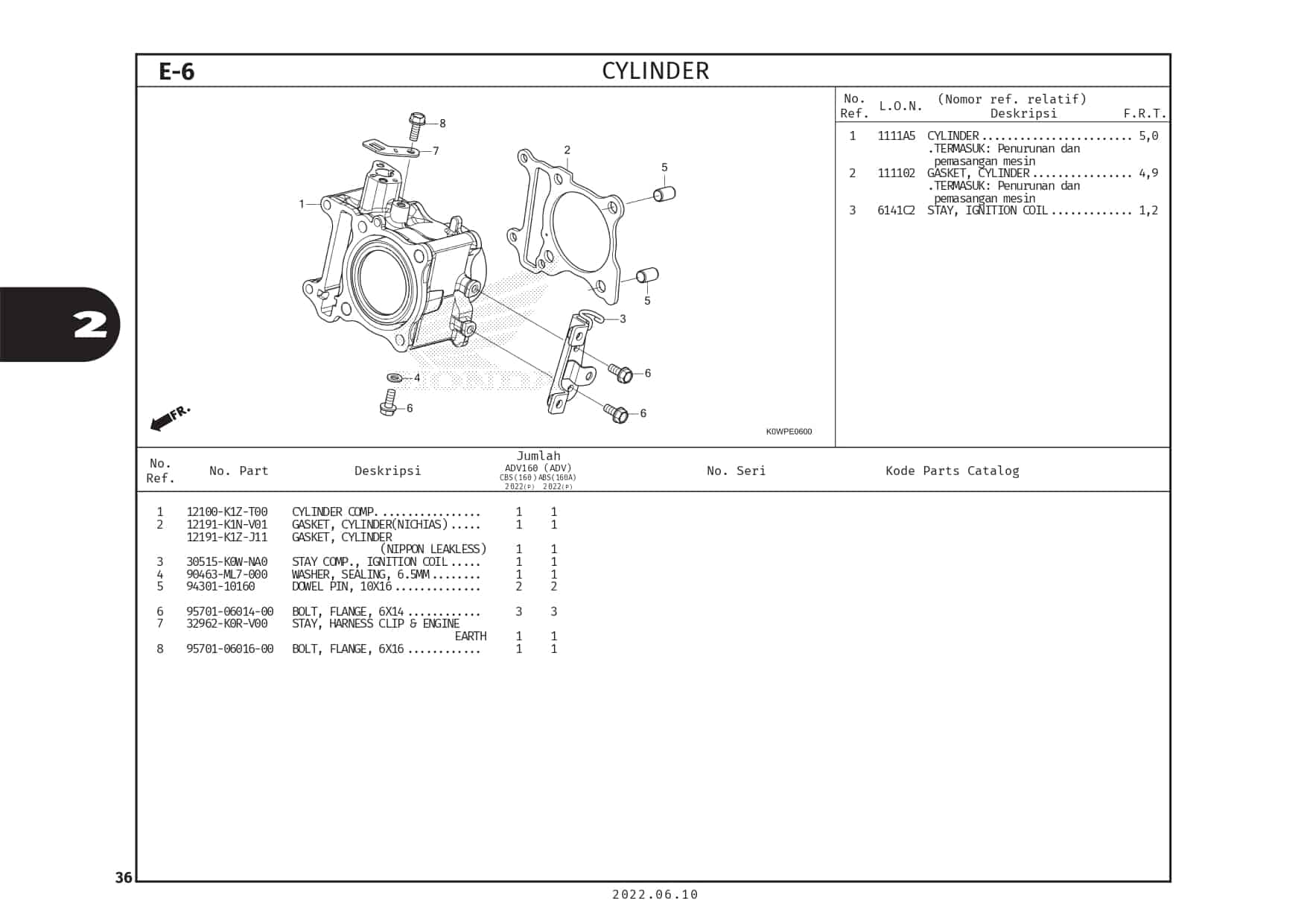

E-6 Cylinder – Honda ADV 160

#	Informasi Produk	Visual
1	CYLINDER COMP Part Number : `12100K1ZT00`
2	GASKET,CYLINDER Part Number : `12191K1NV01`
2	GASKET,CYLINDER Part Number : `12191K1ZJ11`
3	STAY COMP,IGN COIL Part Number : `30515K0WNA0`
4	WASHER SEALING 6.5MM Part Number : `90463ML7000`
5	DOWEL,PIN,10X16 Part Number : `9430110160`
6	BOLT FLANGE 6X14 Part Number : `957010601400`
7	STAY, HARNESS CLIP & ENGINE Part Number : `32962K0RV00`
8	BOLT FLANGE 6X16 Part Number : `957010601600`
