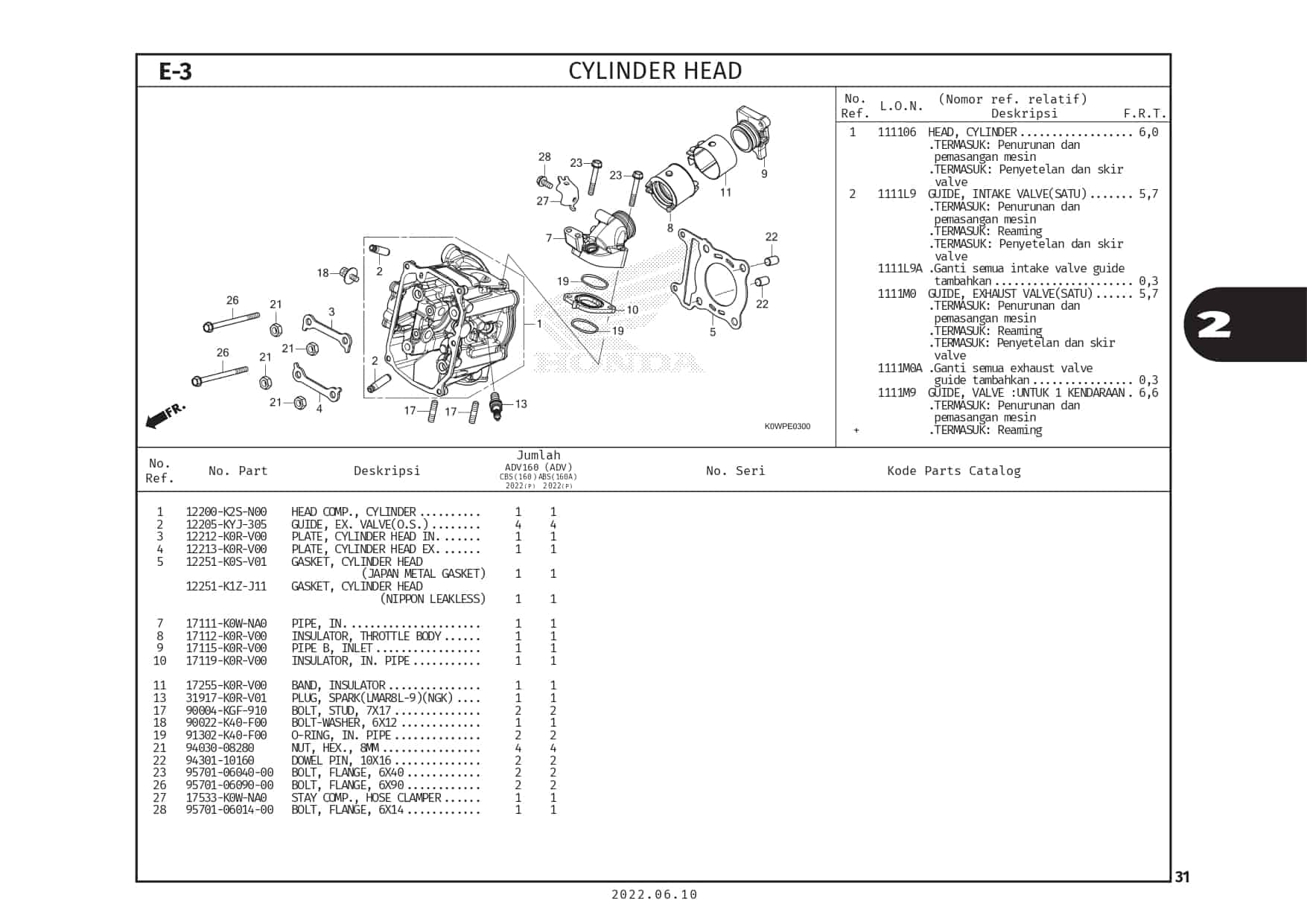

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | HEAD COMP,CYLINDER | 12200K2SN00 |
|
| 1 | HEAD COMP,CYLINDER | 12200K1ZT00 |
|
| 2 | GUIDE,EX VALVE(OV | 12205KYJ305 |
|
| 3 | PLATE, CYLINDER HEAD IN. | 12212K0RV00 |
|
| 4 | PLATE, CYLINDER HEAD EX. | 12213K0RV00 |
|
| 5 | GASKET,CYLINDER HEAD | 12251K1ZJ11 |
|
| 7 | PIPE COMP,INLET | 17111K0WNA0 |
|
| 8 | INSULATOR, THROTTLE BODY | 17112K0RV00 |
|
| 9 | PIPE B, INLET | 17115K0RV00 |
|
| 10 | INSULATOR, IN. PIPE | 17119K0RV00 |
|
| 11 | BAND, INSULATOR | 17255K0RV00 |
|
| 13 | PLUG, SPARK(LMAR8L-9)(NGK) | 31917K0RV01 |
|
| 17 | BOLT, STUD, 7X17 | 90004KGF910 |
|
| 18 | BOLT-WASHER, 6X12 | 90022K40F00 |
|
| 19 | O-RING, IN. PIPE | 91302K40F00 |
|
| 21 | NUT HEX 8MM | 9403008280 |
|
| 22 | DOWEL,PIN,10X16 | 9430110160 |
|
| 23 | BOLT FLANGE 6X40 | 957010604000 |
|
| 26 | BOLT FLANGE 6X90 | 957010609000 |
|
| 27 | STAY COMP,HOSE CLAMPER | 17533K0WNA0 |
|
| 28 | BOLT FLANGE 6X14 | 957010601400 |
|
| 28 | BOLT FLANGE 6X14 | 90001K56N00 |
|
