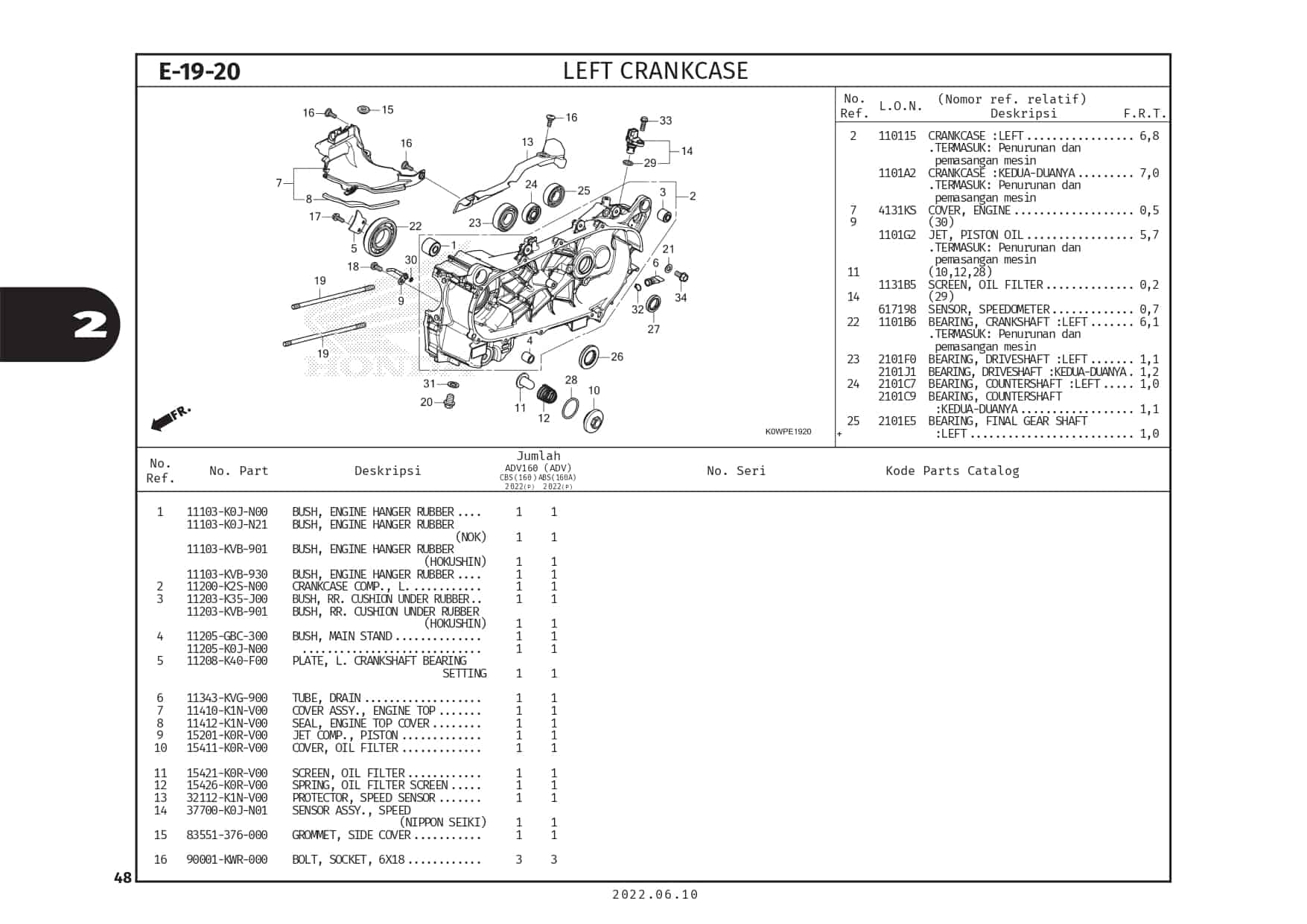

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | RUBBER BUSH,ENGINE HANGER | 11103K0JN00 |
|
| 1 | RUBBER BUSH,ENGINE HANGER | 11103K0JN21 |
|
| 1 | RUB.BUSH,ENG.HANGER | 11103KVB930 |
|
| 2 | CRANK CASE COMP,LEFT | 11200K2SN00 | - |
| 3 | BUSH RR CUSHION UNDER RBR | 11203K35J01 |
|
| 3 | UNDER RUBBER BUSH REAR | 11203KVB901 |
|
| 4 | BUSH M STAND | 11205GBC300 |
|
| 4 | BUSH,M STAND | 11205K0JN00 |
|
| 5 | PLATE, L. CRANKSHAFT BEARING | 11208K40F00 |
|
| 6 | TUBE,DRAIN | 11343KVG900 |
|
| 7 | COVER ASSY,ENG TOP | 11410K1NV00 |
|
| 8 | SEAL,ENG TOP COVER | 11412K1NV00 |
|
| 9 | JET COMP., PISTON | 15201K0RV00 |
|
| 10 | COVER, OIL FILTER | 15411K0RV00 |
|
| 11 | SCREEN, OIL FILTER | 15421K0RV00 |
|
| 12 | SPRING, OIL FILTER SCREEN | 15426K0RV00 |
|
| 13 | PROTR,SP SENSOR | 32112K1NV00 |
|
| 14 | SENSOR ASSY,SPEED | 37700K0JN01 |
|
| 15 | GROMMET,SIDE COVR | 83551376000 |
|
| 16 | BOLT, SOCKET, 6X18 | 90001KWR000 |
|
| 17 | BOLT,FLANGE,6X16 | 90003K1ZN20 |
|
| 18 | BOLT,SPL 6X12 | 90003K0JN00 |
|
| 19 | BOLT B, STUD, 8X213.2 | 90032K0RV00 |
|
| 20 | BOLT DRAIN PLUG 12X15 | 90131883000 |
|
| 21 | WASHER,SEALING 8MM | 90495MN5000 |
|
| 22 | BRG,BALL RADIAL 35X72X15 | 91002K1NV01 |
|
| 22 | BRG, BALL RADIAL 6207 SPL | 91002K2SN01 |
|
| 23 | BRG, BALL RADIAL 6204 | 91003K2SN01 |
|
| 23 | BRG,BALL RADIAL 6204 | 91003KZR601 |
|
| 23 | BEARING RADIAL BALL 6204 | 91003KZR602 |
|
| 24 | BRG, BALL RADIAL 6301 | 91005K2SN01 |
|
| 24 | BEARING RADIAL BALL 6301 | 91005KZR601 |
|
| 24 | BEARING RADIAL BALL 6301 | 91005KZR602 |
|
| 25 | BRG,BALL RADIAL 6004 | 91016K1ZJ11 |
|
| 25 | BRG BALL RADIAL 6201 | 91016KBB901 |
|
| 26 | OIL SEAL 26X45X6 18 | 91202K97T01 |
|
| 27 | OIL SEAL 20X32X6 | 91203K35J01 |
|
| 27 | OIL SEAL, 20X32X6 | 91203K50T01 | - |
| 28 | O-RING, 31.2X2.4 | 91303K0RV01 |
|
| 29 | O-RING,11.4X2.1 | 91303K0JN01 |
|
| 30 | O-RING,3.8X1.4 | 91305K0JN00 |
|
| 31 | WASHER, DRAIN PLUG, 12MM | 9410912000 |
|
| 32 | CLIP, TUBE(C12) | 9500280000 |
|
| 33 | BOLT FLANGE 6X16 | 957010601600 |
|
| 34 | BOLT, FLANGE 8X16 | 957010801600 |
|
