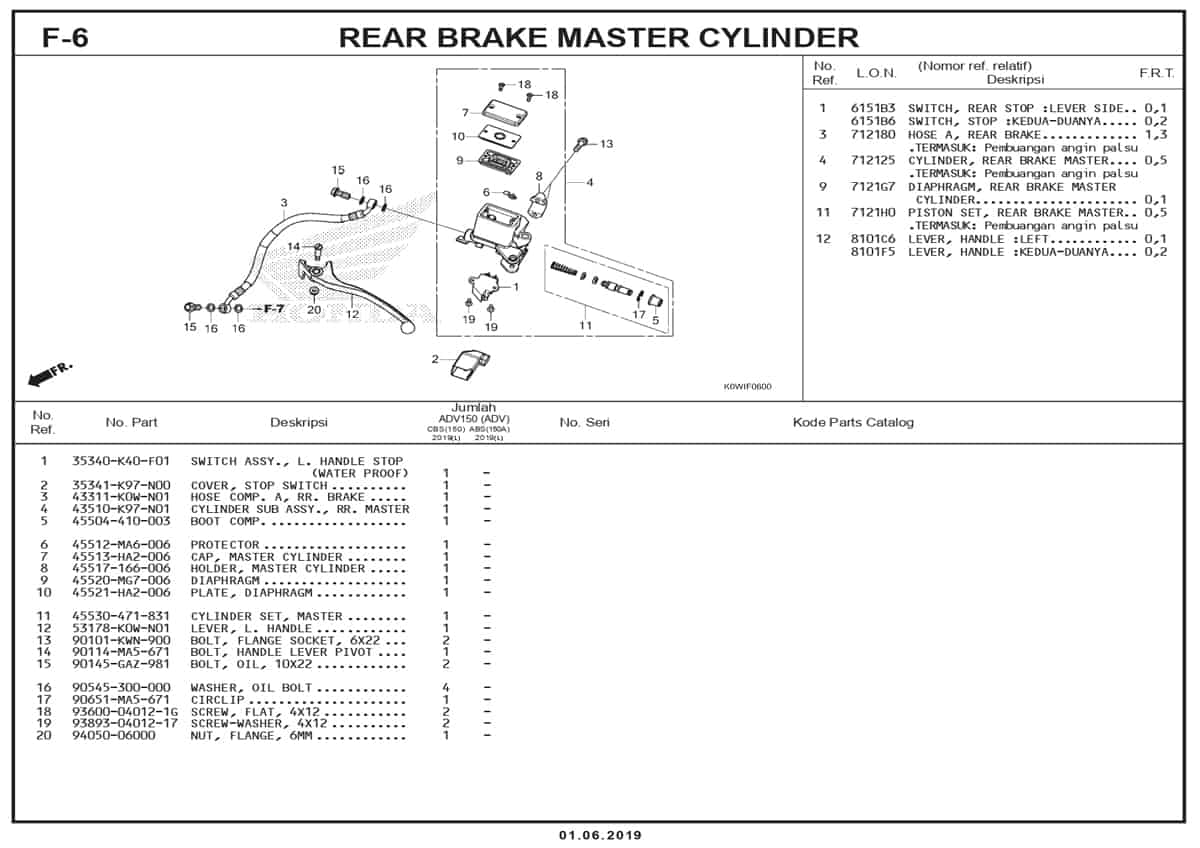

F6- Rear Brake Master Cylinder – Katalog Honda ADV 150

#	Informasi Produk	Visual
1	Switch Assy L Handle Stop Part Number : `35340K40F01`
2	Cover Stop Switch Part Number : `35341K97N00`
3	Hose Comp A RR Brake Part Number : `43311K0WN01`
4	Sub Assy RR M/C Part Number : `43510K97N01`
5	Boot Comp Part Number : `45504410003`
6	Protector Part Number : `45512MA6006`
7	Cap Master Cylinder Part Number : `45513HA2006`
8	Holder Master Cylinder Part Number : `45517166006`
9	Diaphragm Part Number : `45520MG7006`
10	Plate Diaphragm Part Number : `45521HA2006`
11	Cylinder Set Master Part Number : `45530471831`
11	Cylinder Set Master Part Number : `45530KET920`
12	Lever L Handle Part Number : `53178K0WN01`
13	Bolt Flange Socket 6X22 Part Number : `90101KWN900`
14	Bolt Handle Lever Pivot Part Number : `90114MA5671`
15	Bolt Oil 10X22 Part Number : `90145GAZ981`
16	Washer Oil Bolt Part Number : `90545300000`
17	Circlip Part Number : `90651MA5671`
18	Screw Flat 4X12 Part Number : `93600040121G`
19	Screw Washer 4X12 Part Number : `938930401217`
20	Nut Flange 6MM Part Number : `9405006000`
