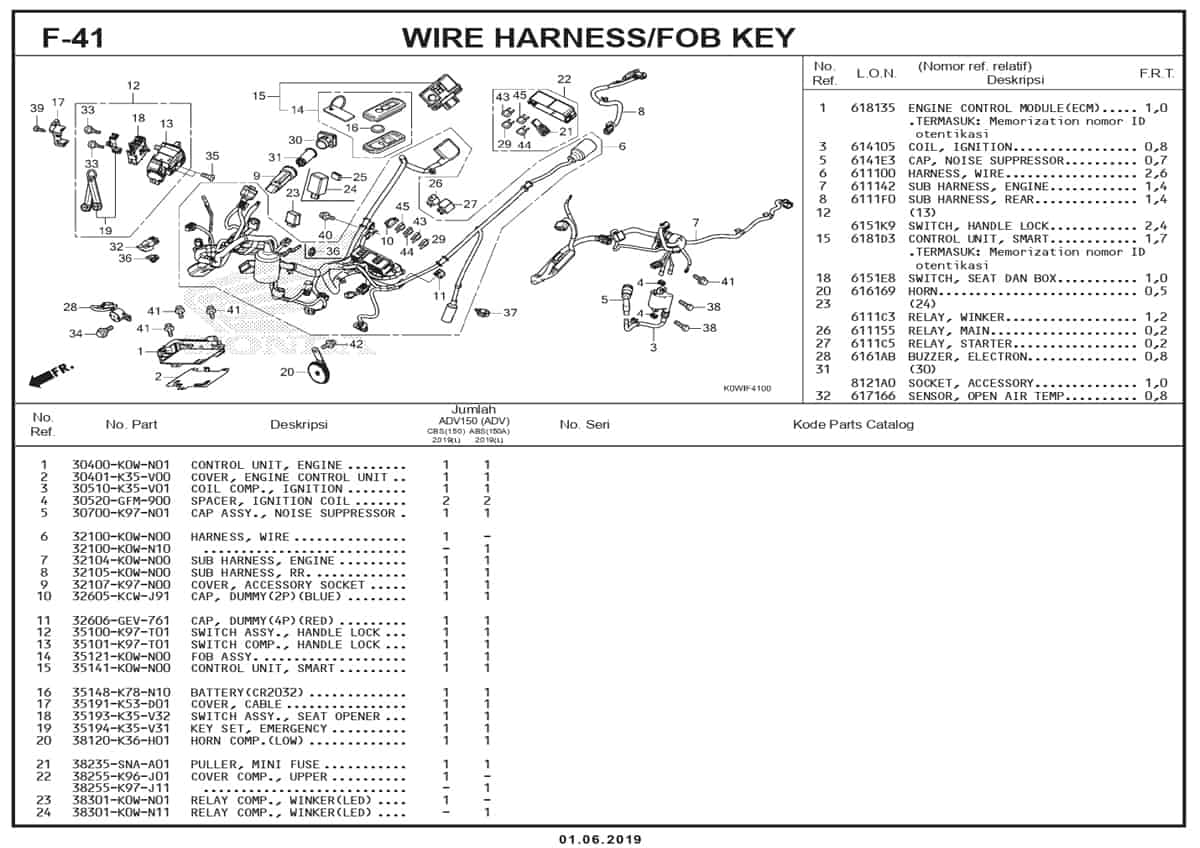

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Eng Control Unit | 30400K0WN01 |
|
| 2 | Cover Engine Control Unit | 30401K35V00 |
|
| 3 | Coil Comp Ignition | 30510K35V01 |
|
| 3 | Coil Comp Ignition | 30510K35V02 |
|
| 4 | Spacer Ignition Coil | 30520GFM900 |
|
| 5 | Cap Assy Noise Suppressor | 30700K97N01 |
|
| 6 | Harness Wire | 32100K0WN00 |
|
| 6 | Harness Wire | 32100K0WN10 |
|
| 7 | Sub Harness Eng | 32104K0WN00 |
|
| 8 | Sub Harness Rear | 32105K0WN00 |
|
| 9 | Cover Accessory Socket | 32107K97N00 |
|
| 10 | Dummy WPC 2P 090 | 32605KCWJ91 |
|
| 11 | Dummy WPC 4P 090 M (RED) | 32606GEV761 |
|
| 12 | Switch Assy Handle | 35100K97T01 |
|
| 13 | Switch Comp Handle | 35101K97T01 |
|
| 14 | Set FOB Assy | 35111K0WN02 |
|
| 15 | Set Smart Control Unit | 35141K0WN02 |
|
| 16 | Battery (CR2032) | 35148K78N10 |
|
| 17 | Cover Cable | 35191K53D01 |
|
| 18 | Switch Assy Seat Open | 35193K35V32 |
|
| 19 | Key Set Emergency | 35194K35V31 |
|
| 20 | Horn Comp (Low) | 38120K36H01 |
|
| 21 | Puller Mini Fuse | 38235SNAA01 |
|
| 22 | Cover Comp Upper | 38255K96J01 |
|
| 22 | Cover Comp Upper | 38255K97J11 |
|
| 23 | Relay Comp Winker LED | 38301K0WN01 |
|
| 24 | Relay Comp Winker (ESS) | 38301K0WN11 |
|
| 25 | Suspension Relay | 38306KK4000 |
|
| 26 | Relay Comp Micro Iso Low Hight | 38501KVZ631 |
|
| 26 | Relay Comp Power | 38501KWN901 |
|
| 27 | Relay Comp Power | 38502KWN901 |
|
| 28 | Buzzer Assy | 38720K66V11 |
|
| 29 | Mini Fuse 2A | 39214HAC000 |
|
| 30 | Cap Assy | 39602K41N21 |
|
| 31 | Socket Assy | 39624K41N21 |
|
| 32 | Sensor Assy Ambient | 80525TBAA01 |
|
| 33 | Screw Opener Set | 90104K53D01 |
|
| 34 | Bolt Special 6MM | 90107KVB900 |
|
| 35 | Screw U-Lock Flat 6X12 | 90164KZLA00 |
|
| 36 | Clip Coupler (Dark Brown) | 91535TA0003 |
|
| 37 | Clip Wire Harness | 91558SD5003 |
|
| 38 | Bolt Hex 6X20 | 92101060204J |
|
| 39 | Screw Tapping 4X12 | 9390124320 |
|
| 40 | Bolt Flange 6X12 | 957010601200 |
|
| 41 | Bolt Flange 6X16 | 957010601600 |
|
| 42 | Bolt Flange 8X16 | 957010801600 |
|
| 43 | Fuse F (7,5A) | 9820040750 |
|
| 44 | Fuse F (15A) | 9820041500 |
|
| 45 | Fuse Mini (25A) | 9820042500 |
|
