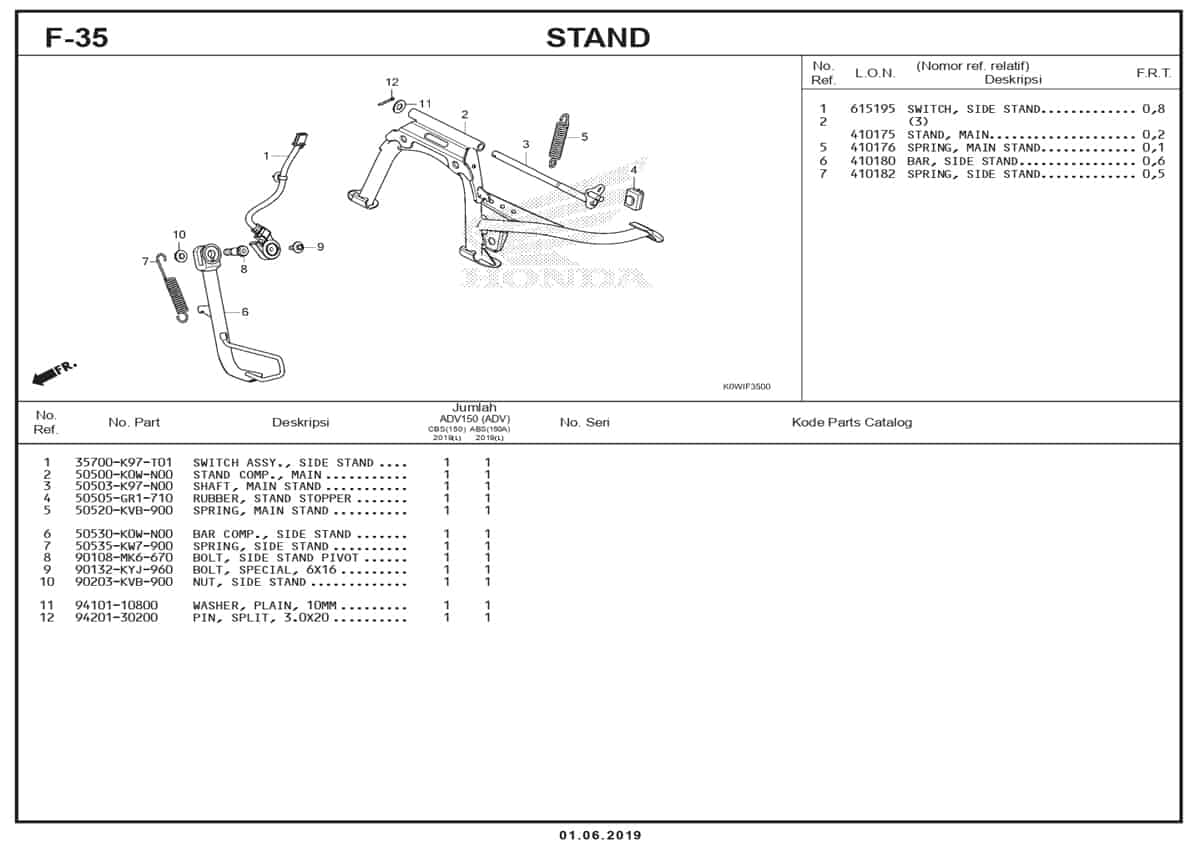

F35 – Stand – Katalog Honda ADV 150

#	Informasi Produk	Visual
1	Switch Assy Side Stand Part Number : `35700K97T01`
2	Stand Comp Main Part Number : `50500K0WN00`
3	Shaft Main Stand Part Number : `50503K97N00`
4	Sopper Rubber Stand Part Number : `50505GR1710`
5	Spring Main Stand Part Number : `50520KVB900`
6	Bar Comp Side Stand Part Number : `50530K0WN00`
7	Spring Side Stand Part Number : `50535KW7900`
8	Bolt Side Stand Pivot Part Number : `90108MK6670`
9	Bolt Special 6X16 Part Number : `90132KYJ960`
10	Nut Side Stand Part Number : `90203KVB900`
11	Washer Plain 10MM Part Number : `9410110800`
12	Pin Cotter 3X20 Part Number : `9420130200`
