F28 – Air Cleaner – Katalog Honda ADV 150

Gambar Bagian

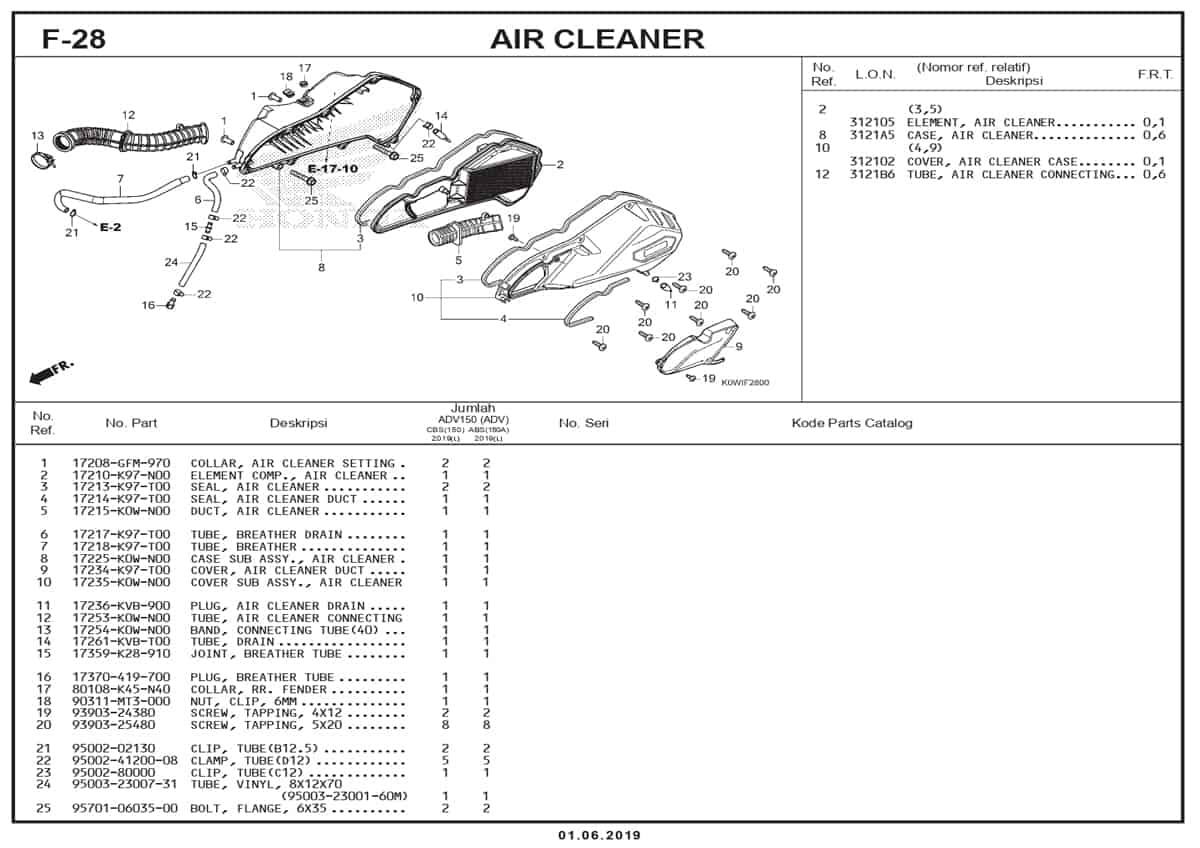

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 Collar Air Cleaner Setting 17208GFM970 Collar Air Cleaner Setting
2 Element Comp A/C 17210K97N00 Element Comp A/C
3 Seal A/C 17213K97T00 Seal A/C
4 Seal A/C Duct 17214K97T00 Seal A/C Duct
5 Duct A/C 17215K0WN00 Duct A/C
6 Tube Breather Drain 17217K97T00 Tube Breather Drain
7 Tube Breather 17218K97T00 Tube Breather
8 Case Sub Assy A/C 17225K0WN00 Case Sub Assy A/C
9 Cover A/C Duct 17234K97T00 Cover A/C Duct
10 Cover Sub Assy A/C 17235K0WN00 Cover Sub Assy A/C
11 Plug A/C Drain 17236KVB900 Plug A/C Drain
12 Tube A/C Connecting 17253K0WN00 Tube A/C Connecting
13 Band 40 Connecting Tube 17254K0WN00 Band 40 Connecting Tube
14 Tube Drain 17261KVBT00 Tube Drain
15 Joint Breather Tube 17359K28910 Joint Breather Tube
16 Plug Breather Tube 17370419700 Plug Breather Tube
17 Collar RR Fender 80108K45N40 Collar RR Fender
17 Collar RR Fender 80108K1Z920 Collar RR Fender
18 Nut Clip 6MM 90311MT3000 Nut Clip 6MM
19 Screw Tapping 4X12 9390324380 Screw Tapping 4X12
20 Screw Tapping 5X20 9390325480 Screw Tapping 5X20
20 Screw Tapping 5X20 93913255J0 Screw Tapping 5X20
21 Clip Tube (B12.5) 9500202130 Clip Tube (B12.5)
22 Clamp D12 Tube 950024120008 Clamp D12 Tube
23 Clip Tube (C12) 9500280000 Clip Tube (C12)
24 Tube Vinyl 8X12X70 950032300731 Tube Vinyl 8X12X70
25 Bolt Flange 6X35 957010603500 Bolt Flange 6X35
