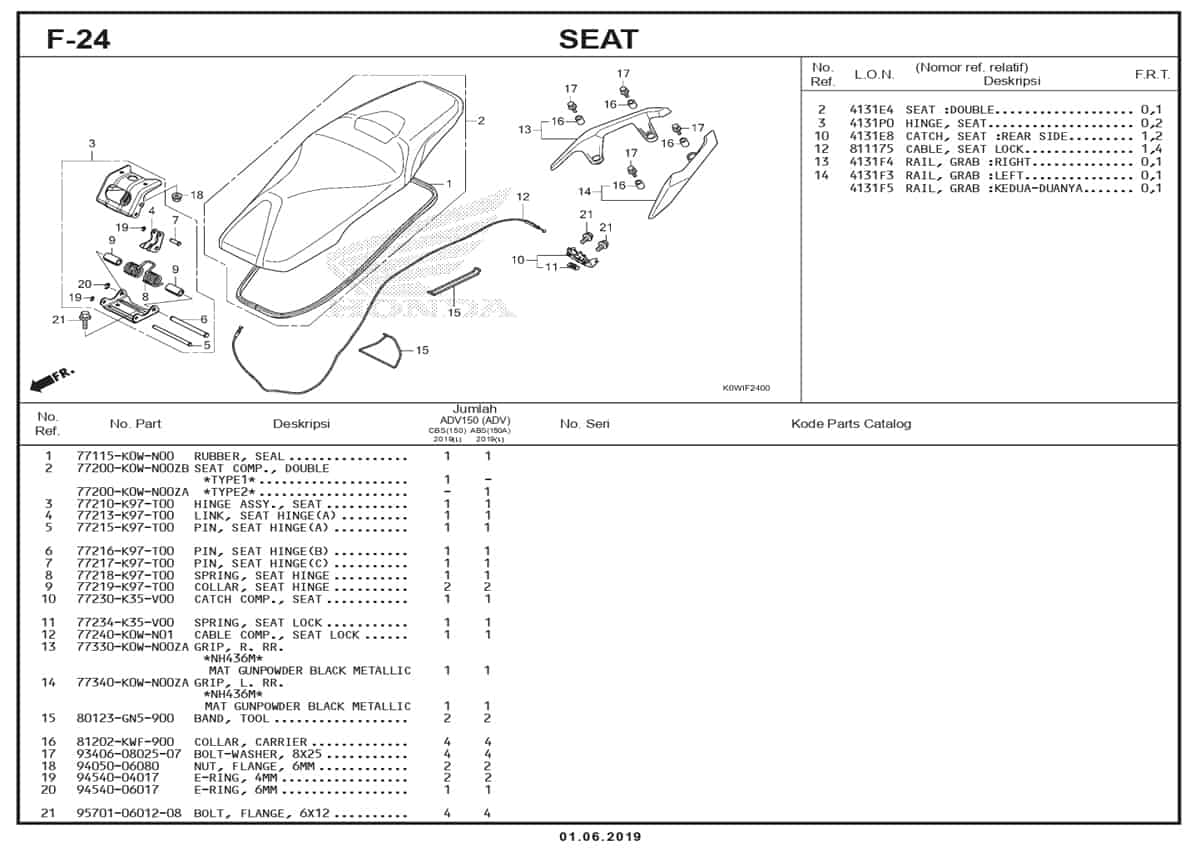

F24 – Seat – Katalog Honda ADV 150

#	Informasi Produk	Visual
1	Rubber Seal Part Number : `77115K0WN00`
2	Seat Comp Double Type 1 Part Number : `77200K0WN00ZB`
2	Seat Comp Double Type 2 Part Number : `77200K0WN00ZA`
3	Hinge Assy Seat Part Number : `77210K97T00`
4	Link A Seat Hinge Part Number : `77213K97T00`
5	Pin A Seat Hinge Part Number : `77215K97T00`
6	Pin B Seat Hinge Part Number : `77216K97T00`
7	Pin C Seat Hinge Part Number : `77217K97T00`
8	Spring Seat Hinge Part Number : `77218K97T00`
9	Collar Seat Hinge Part Number : `77219K97T00`
10	Catch Comp Seat Part Number : `77230K35V00`
11	Spring Seat Lock Part Number : `77234K35V00`
12	Cable Comp Seat Lock Part Number : `77240K0WN01`
13	Grip R RR (BLK) Part Number : `77330K0WN00ZA`
14	Grip L RR (BLK) Part Number : `77340K0WN00ZA`
15	Band Tool Part Number : `80123GN5900`
16	Collar Carrier Part Number : `81202KWF900`
17	Bolt Washer 8X25 Part Number : `934060802507`
18	Nut Flange 6MM Part Number : `9405006080`
19	E-Ring 4 Part Number : `9454004017`
20	E-Ring 6 Part Number : `9454006017`
21	Bolt Flange 6X12 Part Number : `957010601208`
