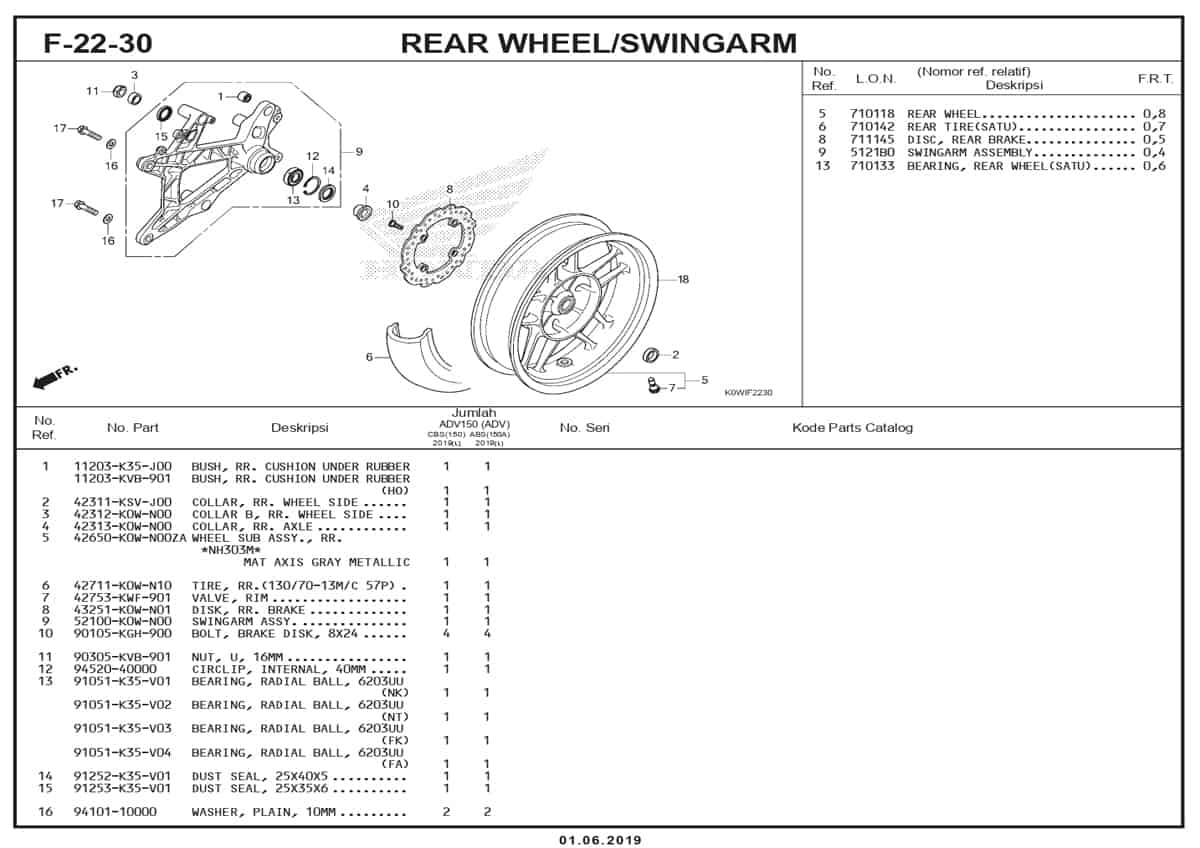

F22-30 – Rear Wheel / Swingarm – Katalog Honda ADV 150

#	Informasi Produk	Visual
1	Bush RR Cushion Under Rubber Part Number : `11203K35J01`
1	Bush RR Cushion Under Rubber Part Number : `11203KVB901`
2	Collar RR Wheel Side Part Number : `42311KSVJ00`
3	Collar B RR Wheel Side Part Number : `42312K0WN00`
4	Collar RR Axle Part Number : `42313K0WN00`
5	Wheel Sub Assy RR (Grey) Part Number : `42650K0WN00ZA`
6	Tire RR (130/70-13m/c 57p) Part Number : `42711K0WN01`
7	Valve Rim (Triton) Part Number : `42753KWF901`
8	Disk RR Brake Part Number : `43251K0WN01`
9	Swingarm Assy Part Number : `52100K0WN00`
10	Bolt Brake Disk 8X24 Part Number : `90105KGH900`
11	Nut U 16MM Part Number : `90305KVB901`
12	Circlip Internal 40MM Part Number : `9452040000`
12	Circlip Internal 40MM Part Number : `90651KZR601`
13	Bearing Radiall Ball 6203UU (NK) Part Number : `91051K35V01`
13	Bearing Radiall Ball 6203UU (NT) Part Number : `91051K35V02`
13	Bearing Radiall Ball 6203UU (FK) Part Number : `91051K35V03`
13	Bearing Radiall Ball 6203UU (FA) Part Number : `91051K35V04`
14	Dust Seal 25X40X5 Part Number : `91252K35V01`
15	Dust Seal 25X35X6 Part Number : `91253K35V01`
16	Washer Plain 10MM Part Number : `9410110000`
17	Bolt Flange 10X40 Part Number : `957011004000`
18	Wheel Comp RR (Grey) Part Number : `42601K0WN01`
