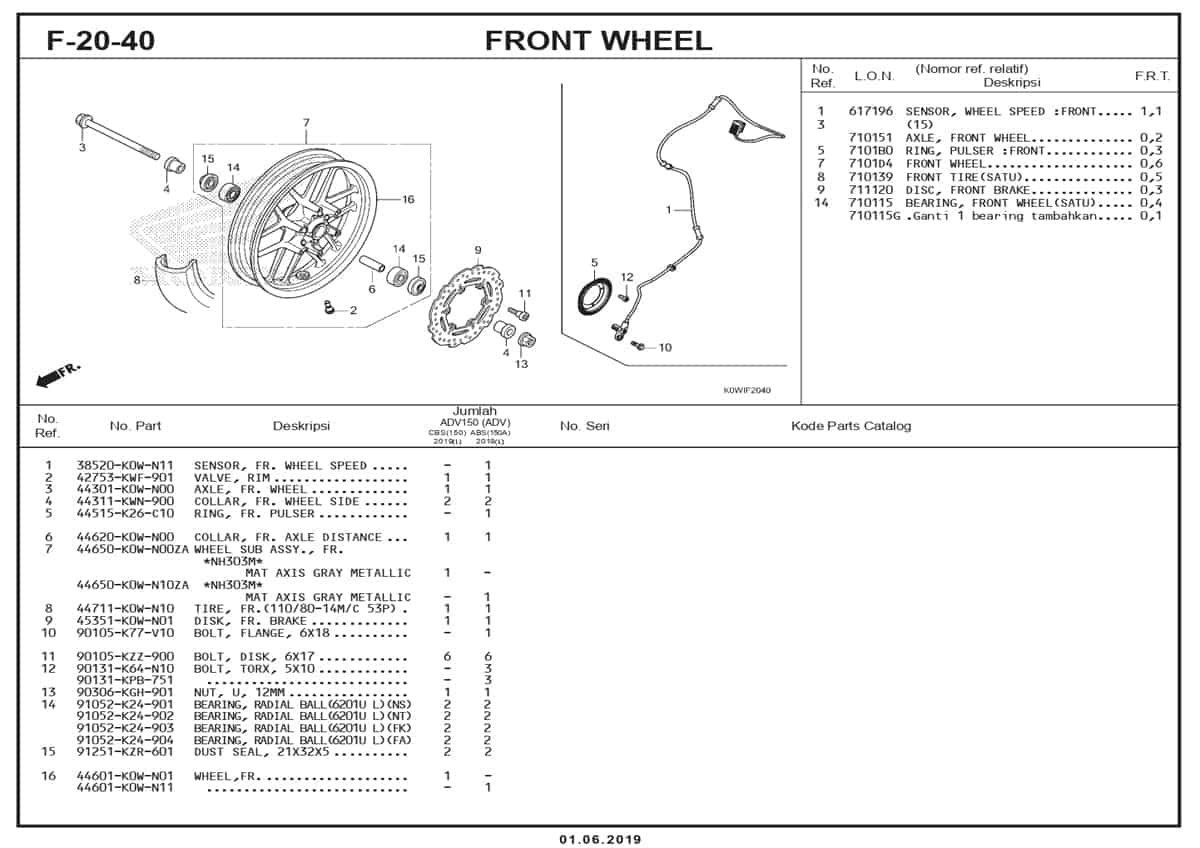

F20-40 – Front Wheel – Katalog Honda ADV 150

#	Informasi Produk	Visual
1	Sensor FR Wheel Speed Part Number : `38520K0WN11`
2	Valve Rim (TRITON) Part Number : `42753KWF901`
3	Axle FR Wheel Part Number : `44301K0WN00`
4	Collar FR WHEEL SIDE Part Number : `44311KWN900`
5	Ring FR Pulser Part Number : `44515K26C10`
6	Collar FR Axle Dispenser Part Number : `44620K0WN00`
7	Wheel Sub Assy Front (Grey) Part Number : `44650K0WN00ZA`
7	WHEEL SUB ASSY,FRNT(GREY) Part Number : `44650K0WN10ZA`
8	Tire FR (SRI) (110-80 -14MC 53P) Part Number : `44711K0WN01`
9	Disk FR Brake Part Number : `45351K0WN01`
10	Bolt Flange NSHF 6X18 Part Number : `90105K77V10`
11	Bolt Disk 6X17 Part Number : `90105KZZ900`
12	Bolt Tork 5X10 Part Number : `90131K64N10`
12	Bolt Torx 5X10 Part Number : `90131KPB751`
13	Nut U 12MM Part Number : `90306KGH901`
14	Bearing Radial Ball L 6201U L Part Number : `91052K24902`
14	BRG,BALL RADIAL 6201U L Part Number : `91052K24903`
14	Bust EARING RADIAL BALL(6201U L) Part Number : `91052K24904`
15	D-ixt Xezk, 21X32X5 Part Number : `91251KZR601`
16	wheel FR (GRY) Part Number : `44601K0WN01`
16	WHEEL,FRONT(GREY)wheel FR (GRY) Part Number : `44601K0WN11`
