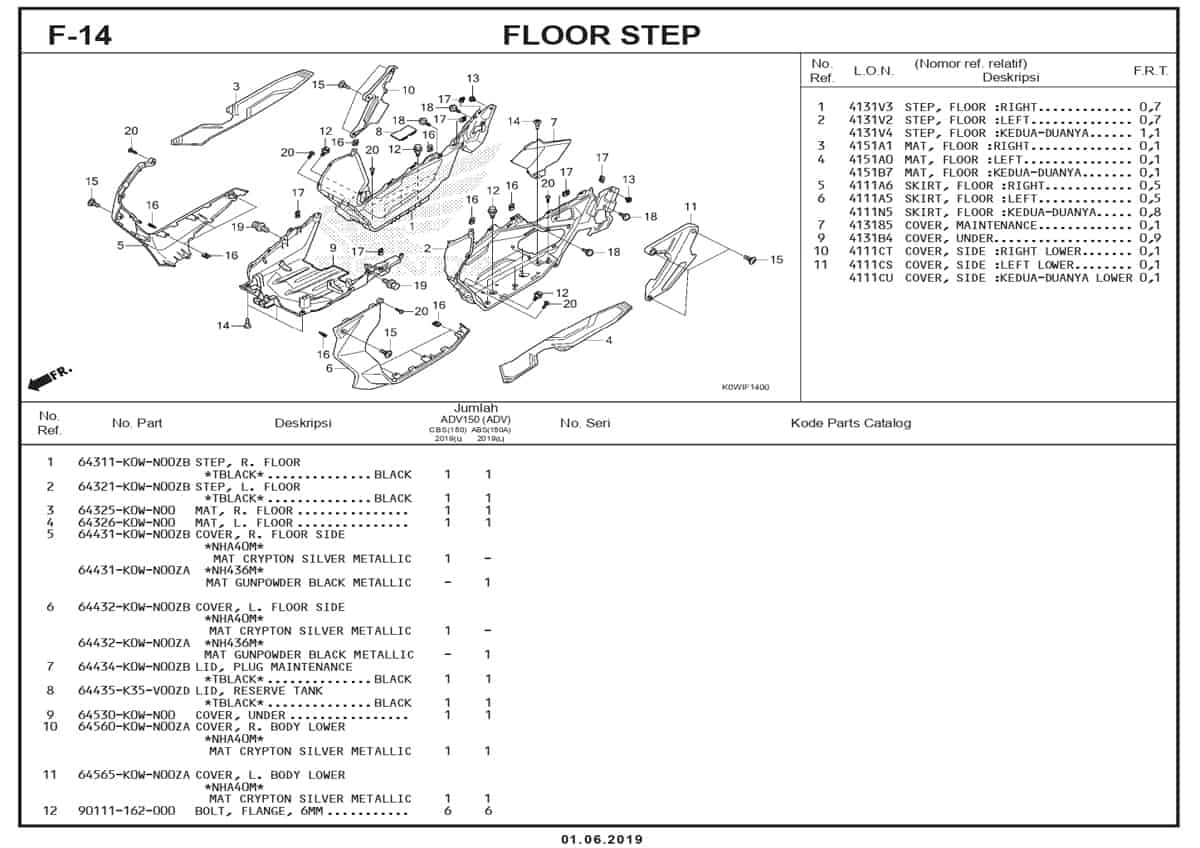

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Step R Floor | 64311K0WN00ZB |
|
| 2 | Step L Floor | 64321K0WN00ZB |
|
| 3 | Mat R Floor | 64325K0WN00 |
|
| 4 | Mat L Floor | 64326K0WN00 |
|
| 5 | Cover R Floor Side (MT CR SL) | 64431K0WN00ZB |
|
| 5 | Cover R Floor Side (MT GN BL) | 64431K0WN00ZA |
|
| 5 | Cover Right Floor Side (SOZAI) | 64431K0WN000AA |
|
| 6 | Cover L Floor Side (MT CR SL) | 64432K0WN00ZB |
|
| 6 | Cover L Floor Side (MT GN BL) | 64432K0WN00ZA |
|
| 6 | Cover Left Floor Side (SOZAI) | 64432K0WN000AA |
|
| 7 | Lid Plug Maintenance | 64434K0WN00ZB |
|
| 8 | Lid Reserve Tank | 64435K35V00ZD |
|
| 9 | Cover Under | 64530K0WN00 |
|
| 10 | Cover R Body Lower (MT CR SL) | 64560K0WN00ZA |
|
| 10 | Cover R Body Lower (Sosai) | 64560K0WN000AA |
|
| 11 | Cover L Body Lower (MT CR SL) | 64565K0WN00ZA |
|
| 11 | Cover L Body Lower (Sosai) | 64565K0WN000AA |
|
| 12 | Bolt Flange 6MM | 90111162000 |
|
| 13 | Rivet Push 6MM | 90116K0AE11 |
|
| 14 | Clip Bumper Seal | 90116K2PV61 |
|
| 15 | Screw Pan 5X14 | 90134KPPT00 |
|
| 16 | Nut Spring 4MM | 90302KWWA00 |
|
| 16 | Nut Spring 4MM | 90302SA4003 |
|
| 17 | Nut Clip 5MM | 90677KANT00 |
|
| 18 | Screw Pan 5X11.5 | 91509GE2760 |
|
| 19 | Bolt Washer 6X12 | 934040601207 |
|
| 19 | Bolt Washer 6X12 | 934040601200 |
|
| 19 | Bolt Washer 6X12 | 934040601208 |
|
| 20 | Screw Tapping 4x16 | 9390334420 |
|
| 20 | Screw Tapping 4x16 | 9390334421 |
|
