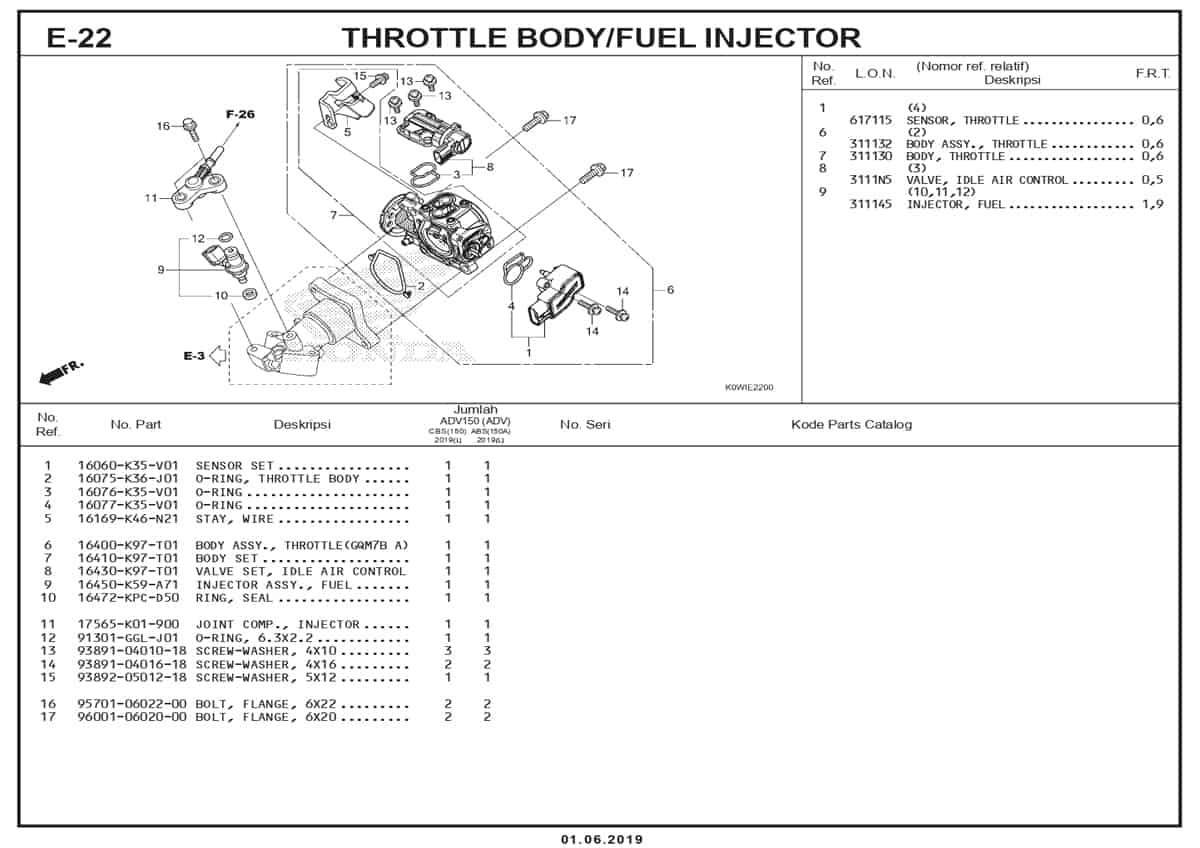

E22 – Throttle Body / Fuel Injector – Katalog Honda ADV 150

#	Informasi Produk	Visual
1	Sensor Set Part Number : `16060K35V01`
2	O-Ring Throttle Body Part Number : `16075K36J01`
3	O-Ring Part Number : `16076K35V01`
3	O-Ring Part Number : `16076K35V02`
4	O-Ring Part Number : `16077K35V01`
4	O-Ring Part Number : `16077K35V02`
5	Stay Wire Part Number : `16169K46N21`
6	Body Assy Throttle Part Number : `16400K97T01`
7	Body Set Part Number : `16410K97T01`
8	Valve Set Idle Air Control Part Number : `16430K97T01`
9	Injector Assy Fuel Part Number : `16450K59A71`
9	Injector Assy Fuel Part Number : `16450K59A11`
10	Ring Seal Part Number : `16472KPCD50`
10	Ring Seal Part Number : `16472KPCD51`
11	Joint Comp Inject Part Number : `17565K01900`
12	O-Ring 6.3X2.2 Part Number : `91301GGLJ01`
12	O Ring 6,3x2,2 Part Number : `91301GGLJ02`
13	Screw Washer 4X10 Part Number : `938910401018`
14	Screw Washer 4X16 Part Number : `938910401618`
15	Screw Washer 5X12 Part Number : `938920501218`
16	Bolt Flange 6X22 Part Number : `957010602200`
16	Bolt Flange 6X22 Part Number : `957010602207`
17	Bolt Flange 6X20 Part Number : `960010602000`
