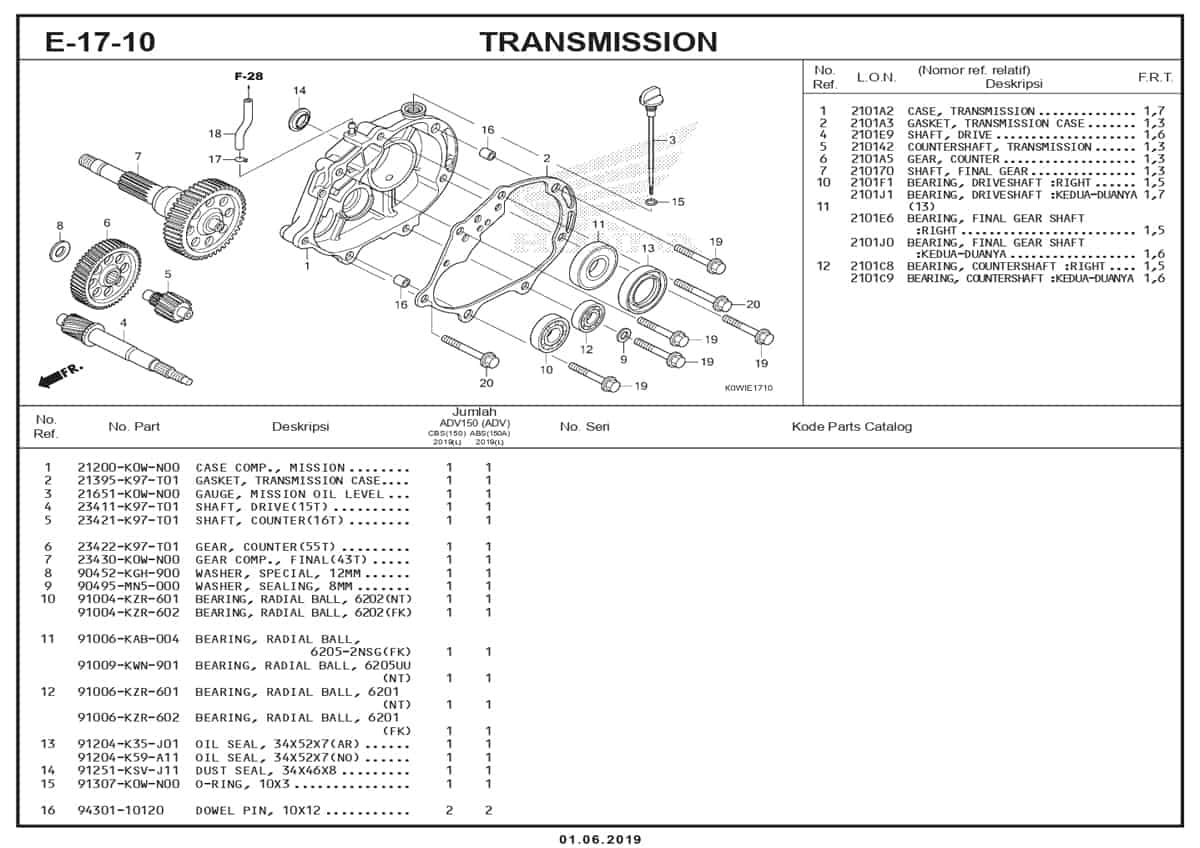

E17 -10 – Transmission – Katalog Honda ADV 150

#	Informasi Produk	Visual
1	Case Comp Mission Part Number : `21200K0WN00`
2	Gasket Transmission Case Part Number : `21395K97T01`
3	Gauge Mission Oil Level Part Number : `21651K0WN00`
4	Shaft Drive Part Number : `23411K97T01`
5	Shaft Counter Part Number : `23421K97T01`
6	Gear Counter Part Number : `23422K97T01`
7	Gear Comp Final Part Number : `23430K0WN00`
8	Washer Special 12MM Part Number : `90452KGH900`
9	Washer Sealing 8MM Part Number : `90495MN5000`
10	Bearing Radial Ball 6202 Part Number : `91004KZR601`
10	Bearing Radial Ball 6202 Part Number : `91004KZR602`
11	Bearing Radial Ball 6205 FK Part Number : `91006KAB004`
11	Bearing Radial Ball 6205 UU Part Number : `91009KWN901`
12	Bearing Radial Ball 6201 Part Number : `91006KZR601`
12	Bearing Radial Ball 6201 Part Number : `91006KZR602`
13	Oil Seal 34X52X7 Part Number : `91204K35J01`
13	Oil Seal 34X52X7 Part Number : `91204K59A11`
14	Dust Seal 34X46X8 Part Number : `91251KSVJ11`
15	O-Ring 10X3 Part Number : `91307K0WN00`
16	Pin Dowel 10X12 Part Number : `9430110120`
17	Clip Tube 5.0 MM Part Number : `9500250000`
18	Tube 5X075 Part Number : `950055007530`
19	Bolt Flange 8X45 Part Number : `957010804500`
20	Bolt Flange 8X55 Part Number : `957010805500`
