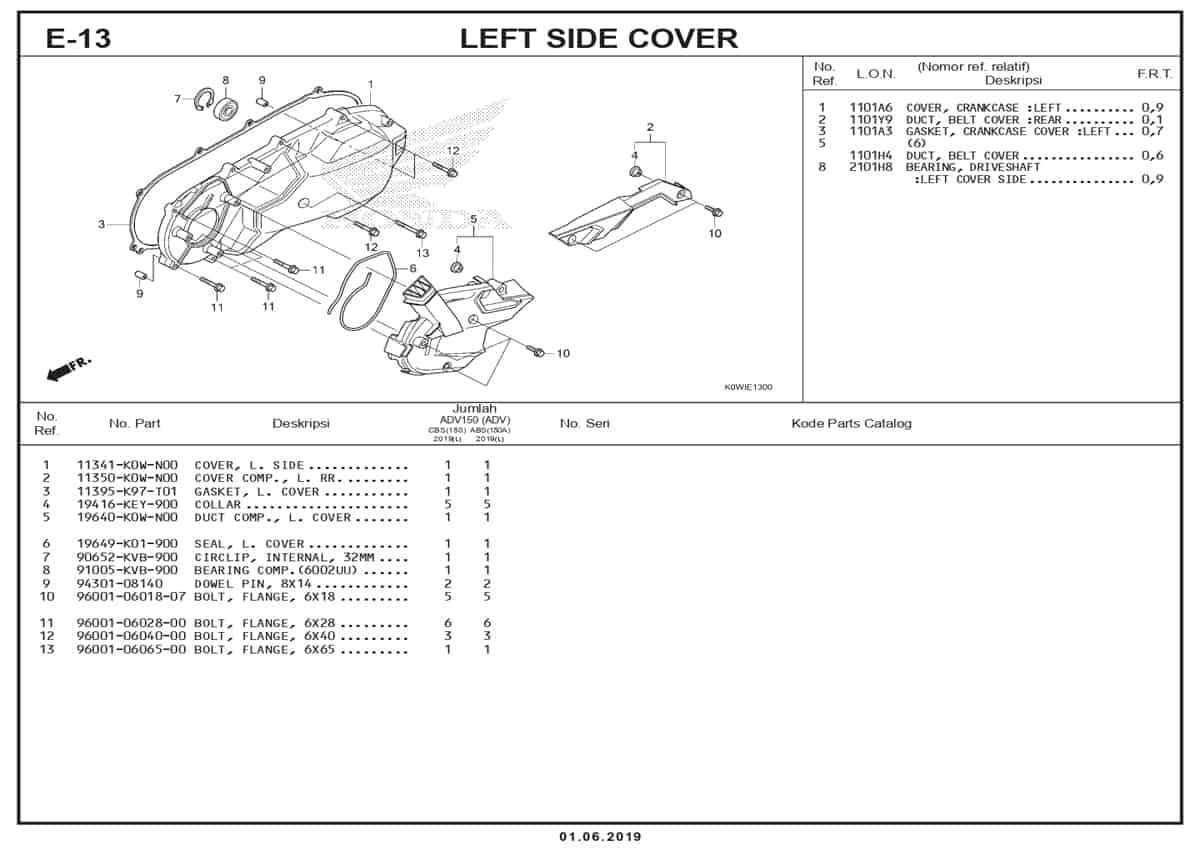

E13- Left Side Cover – Katalog Honda ADV 150

#	Informasi Produk	Visual
1	Cover L Side Part Number : `11341K0WN00`
1	Cover L Side Part Number : `11341K0WN01`
2	Cover Comp L Rear Part Number : `11350K0WN00`
3	Gasket L Cover Part Number : `11395K97T01`
4	Collar Part Number : `19416KEY900`
5	Duct Comp L Cover Part Number : `19640K0WN00`
6	Seal L Cover Duct Part Number : `19649K01900`
7	Circlip In 32MM Part Number : `90652KVB900`
8	Bearing Comp (6002UU) Part Number : `91005KVBN50`
8	Bearing Comp Part Number : `91010K1AN80`
9	Pin Dowel 8X14 Part Number : `9430108140`
10	Bolt Flange 6X18 Part Number : `960010601807`
11	Bolt Flange 6X28 Part Number : `960010602800`
12	Bolt Flange 6X40 Part Number : `960010604000`
13	Bolt Flange 6X65 Part Number : `960010606500`
